~1961 Ariens 10ML restoration

3 months ago, I bought this "restored" Ariens snowblower that was missing an engine from a craigslist seller who was in the process of moving(the price was right and I happened to have a spare Tecumseh H70 engine). I finally got around to mounting the engine on the chassis this weekend and I have some questions:



1) What would you use for a belt guide? I had something like this in mind:

https://encrypted-tbn2.gstatic.com/i...wAEbn37PW7LvsQ

(maybe cut it into two individual rods)?

2) The engine has a 1" shaft so I'm in search of a pulley with a 1" ID bore. I'm seeing a 2.7" pulley and a 3" pulley available. Either one looks "close enough." Does anyone know what the stock pulley size is?

The engine shaft is about 3/4" too long and hitting the belt cover(the belt cover is metal). I'll either need to cut the engine shaft or cut the belt cover(I'm leaning towards cutting the shaft). More pictures to come as I make progress!
db130 is online now
Sponsored Links
Advertisement

post #2 of 79 Old 02-24-2013, 10:52 AM
Senior Member

69ariens's Avatar

Join Date: Jan 2011
Location: framingham, MA Gilford,nh
Posts: 1,033
Post Thanks / Like
Thanks (Given): 18
Thanks (Received): 38
Likes (Given): 53
Likes (Received): 100
There is a guy in reading ma that would have the fact guides, He always post on the boston craigs list. Also may be jackmels on this site,may part with a pair. They may have your pulley as well.

Scott
69 ariens
toro 721r
toro 926 hd oxe
78 powerking 1614/48'' haban snowblower
69ariens is offline
post #3 of 79 Old 02-24-2013, 11:51 AM
Senior Member

Jackmels's Avatar

Join Date: Feb 2013
Location: Ma.
Posts: 2,040
Post Thanks / Like
Thanks (Given): 108
Thanks (Received): 164
Likes (Given): 347
Likes (Received): 648
I'm sure I have a pair of Belt guides for you. The original pulley is 3/4 crank and the inside diameter where the belt rides is 1 3/4". I might have something for a 1" Crank that will work, or you can get something close from NAPA. As far as your additional Crank Length, Cut it down to size with a whizzer wheel.
Jackmels is offline
post #4 of 79 Old 02-24-2013, 01:28 PM Thread Starter
Senior Member

db130's Avatar

Join Date: Feb 2013
Location: MA
Posts: 722
Post Thanks / Like
Thanks (Given): 15
Thanks (Received): 64
Likes (Given): 205
Likes (Received): 139
Yes, I have bought from the North Reading guy before and I have reached out to him through ebay for the belt guides. A new pulley is on its way from another ebay vendor as well.

I'll keep you guys posted as I make progress.
db130 is online now
post #5 of 79 Old 03-02-2013, 05:12 PM Thread Starter
Senior Member

db130's Avatar

Join Date: Feb 2013
Location: MA
Posts: 722
Post Thanks / Like
Thanks (Given): 15
Thanks (Received): 64
Likes (Given): 205
Likes (Received): 139

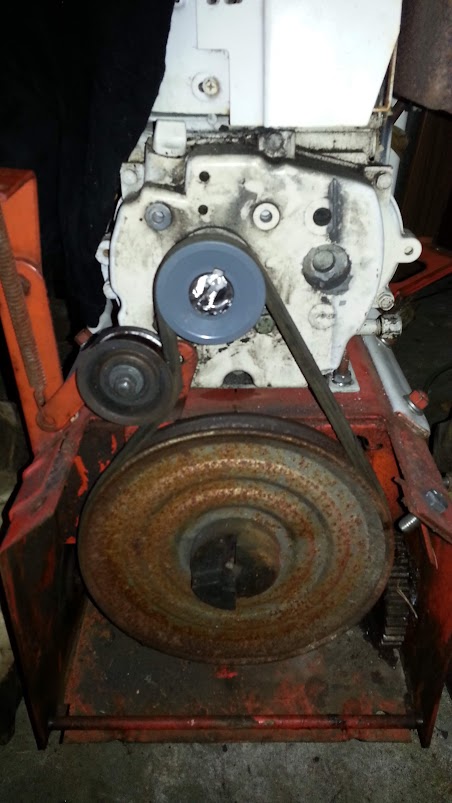

a new 2.5" OD pulley with 1" bore has been installed after cutting off about an inch form the crank:




waiting for the belt guides to arrive in the mail.
db130 is online now
post #6 of 79 Old 03-07-2013, 08:50 PM Thread Starter
Senior Member

db130's Avatar

Join Date: Feb 2013
Location: MA
Posts: 722
Post Thanks / Like
Thanks (Given): 15
Thanks (Received): 64
Likes (Given): 205
Likes (Received): 139
belt guides have arrived:



the previous owner's chute control relocation. it works well enough:



H70-130065



The engine had been sitting with gas in it since last August but it started right up after I cleaned out the carb bowl.
db130 is online now
post #7 of 79 Old 03-07-2013, 10:27 PM
Senior Member

Join Date: Nov 2012
Location: NH
Posts: 121
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 2
Likes (Given): 3
Likes (Received): 4
That's pretty cool. It didn't take much to turn this into a great machine.
Pythons37 is offline
post #8 of 79 Old 03-08-2013, 07:54 AM
Senior Member

Join Date: Dec 2012
Location: Marlborough, MA
Posts: 697
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 10
Likes (Given): 0
Likes (Received): 35
You get a chance to try it out today!!!
nt40lanman is offline
post #9 of 79 Old 03-08-2013, 12:20 PM Thread Starter
Senior Member

db130's Avatar

Join Date: Feb 2013
Location: MA
Posts: 722
Post Thanks / Like
Thanks (Given): 15
Thanks (Received): 64
Likes (Given): 205
Likes (Received): 139
Yes, will be trying it out later this afternoon(already did the driveway with one of my other snowblower). Here are some other pics(got tired of taking pictures of it in the cramped garage space):





For the time being, this is the only snowblower in my fleet that doesn't have an electric starter but it is also the one that I can reliably start with the recoil starter.
