1960 Ariens 10M Project

Hello everyone, as some of you may already know I am the owner of a 1960 Ariens 10M snowblower.
Cosmetically it is in ok condition. The 2 speed forward and reverse gearbox is not working (feels like it is stripped internally), it may be the very first thing that I take a look at. The engine is not working (feels like it may have a thrown rod-moves a litle both ways and stops), anyways it is not likely the original engine as according to Scot's site it should have a Lauson 4.5hp engine and instead it has a Lauson 5.5hp engine (might be a late 61 or early 62 engine). I will look at the engine after the gearbox is fixed (if possible), or I may use another engine instead.

I will try and post as progress is made (as time allows).

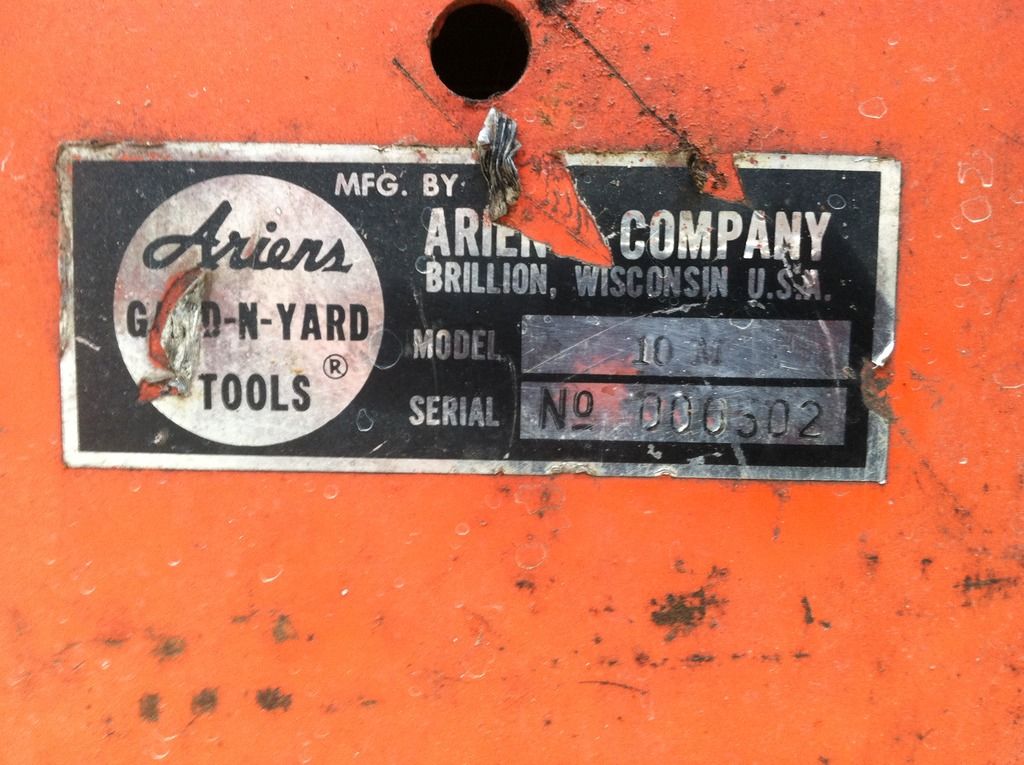

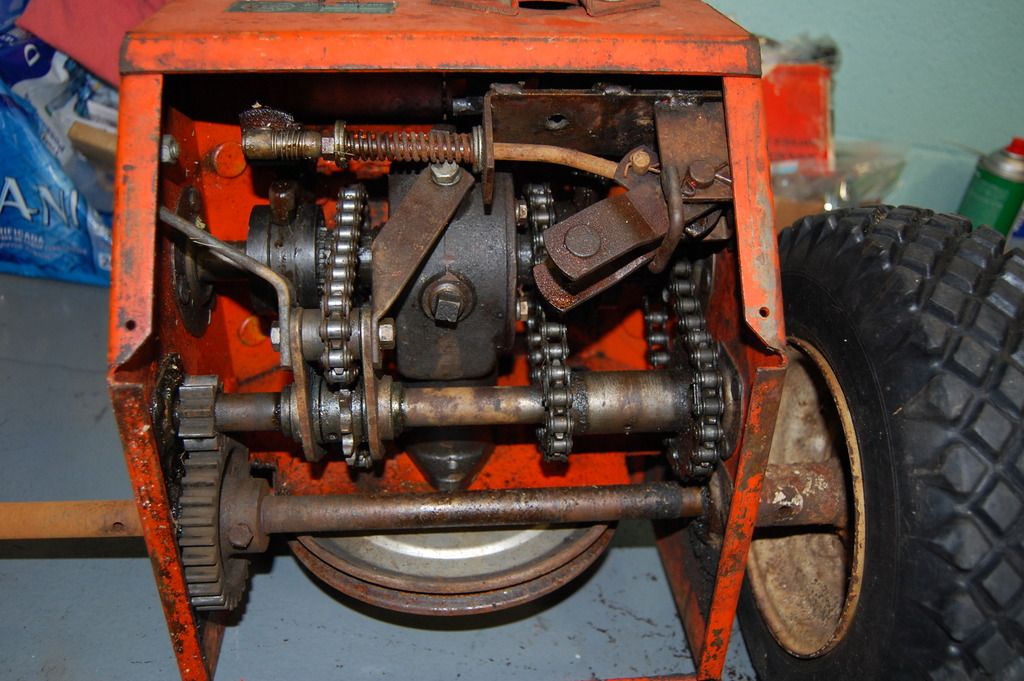

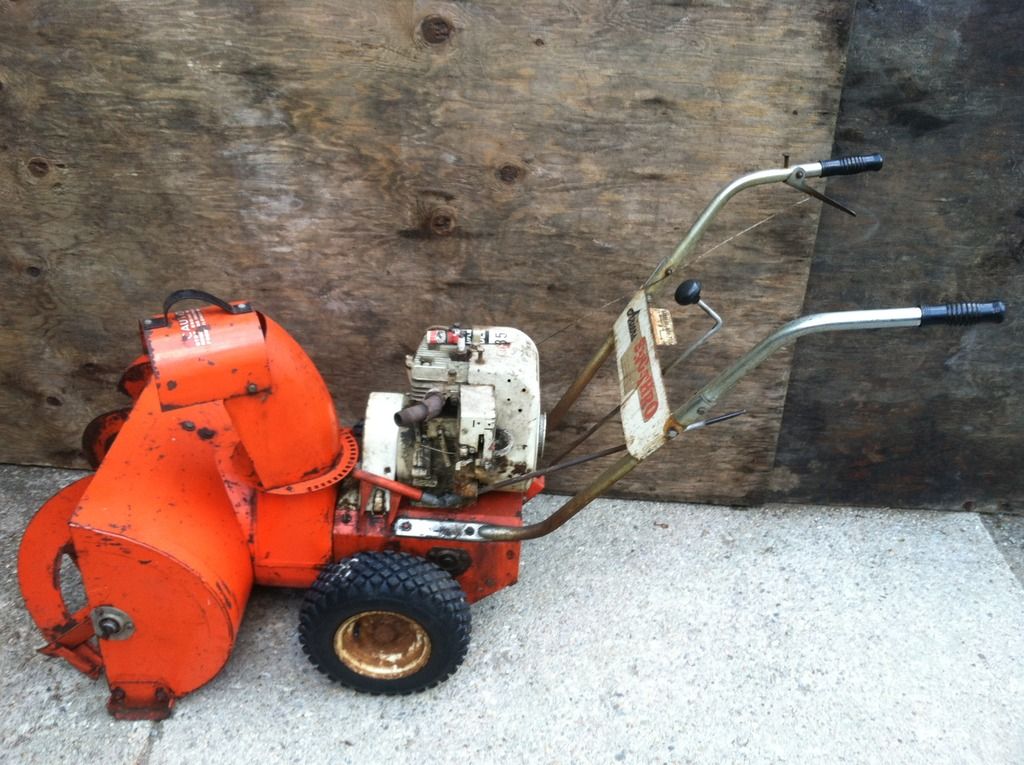

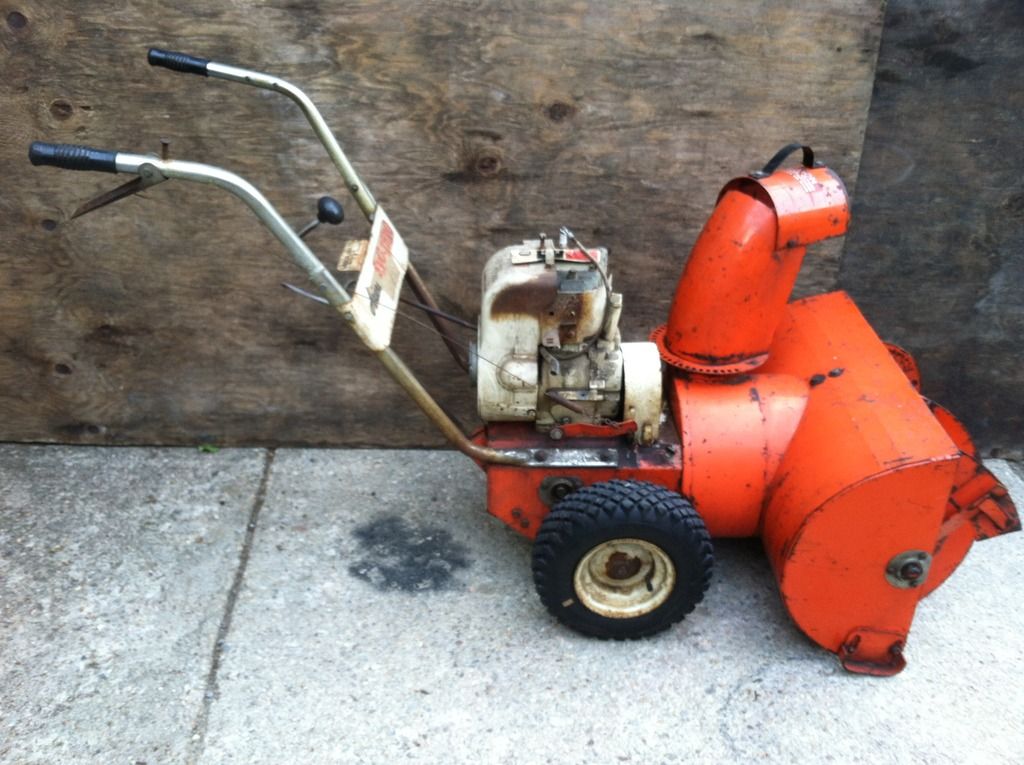

This is what I am starting with.........











YSHSfan is offline
Post Thanks / Like - 0 Thanks, 1 Likes, 0 Dislikes
Likes ELaw liked this post
Sponsored Links
Advertisement

post #2 of 26 Old 06-22-2016, 02:41 PM
Senior Member

Join Date: Jun 2016
Location: Québec
Posts: 231
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 12
Likes (Given): 5
Likes (Received): 59
Wow, she's come a long way! They've stopped making those exposed augers a long time ago, before lawyers (and garage doors) had their say.
guyl is offline
post #3 of 26 Old 06-22-2016, 06:13 PM
Senior Member

rnaude241's Avatar

Join Date: Nov 2013
Location: East Taunton, MA
Posts: 159
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 1
Likes (Given): 0
Likes (Received): 12
That's awesome. Hopefully you can get it running. As for the gearbox, when I spoke to the guy selling it he had mentioned that it was replaced with a friction disc (also mentioned on Scot's page). So I am curious if that's the case or not. Good Luck!

1961 Ariens 10ML-35
1963 Ariens 10M-L60D
1969 Ariens 10970
rnaude241 is offline
post #4 of 26 Old 06-22-2016, 07:38 PM
Senior Member

AriensProMike's Avatar

Join Date: Dec 2014
Location: Burlington, MA
Posts: 269
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 14
Likes (Given): 3
Likes (Received): 45
That's too bad on the engine. Look forward to the progress.
AriensProMike is online now
post #5 of 26 Old 06-22-2016, 09:19 PM
Senior Member

Join Date: Jan 2015
Location: Cape Cod Ma.
Posts: 163
Post Thanks / Like
Thanks (Given): 4
Thanks (Received): 19
Likes (Given): 23
Likes (Received): 62
Wow, That's an oldie. Nice project. I like bringing old vintage engine powered
equipment back to life.

Lee

John Deere TRS32
Craftsman 1032 Drift Breaker
John Deere 1032
Bolens 1032
John Deere 1032 Project
lee h is offline
post #6 of 26 Old 06-22-2016, 10:51 PM
Senior Member

scrappy's Avatar

Join Date: Dec 2014
Location: New Jersey
Posts: 537
Post Thanks / Like
Thanks (Given): 6
Thanks (Received): 39
Likes (Given): 36
Likes (Received): 91
AWesome!

Good luck and hope it all goes well.

As for the engine, just maybe a hunk of carbon on top of the piston. I've seen this happen a few times.

Keep us posted with your progress!
scrappy is offline
post #7 of 26 Old 06-23-2016, 01:19 PM Thread Starter
Senior Member

Join Date: Jun 2014
Location: Shoreline, CT
Posts: 3,446
Post Thanks / Like
Thanks (Given): 103
Thanks (Received): 375
Likes (Given): 466
Likes (Received): 478
Quote:
Originally Posted by rnaude241 View Post
That's awesome. Hopefully you can get it running. As for the gearbox, when I spoke to the guy selling it he had mentioned that it was replaced with a friction disc (also mentioned on Scot's page). So I am curious if that's the case or not. Good Luck!
The original transmission was not really replaced, everything seems to still be there. What he did instead was to get a used "tractor" 62-63? with friction disc and used it with the blower attachment.

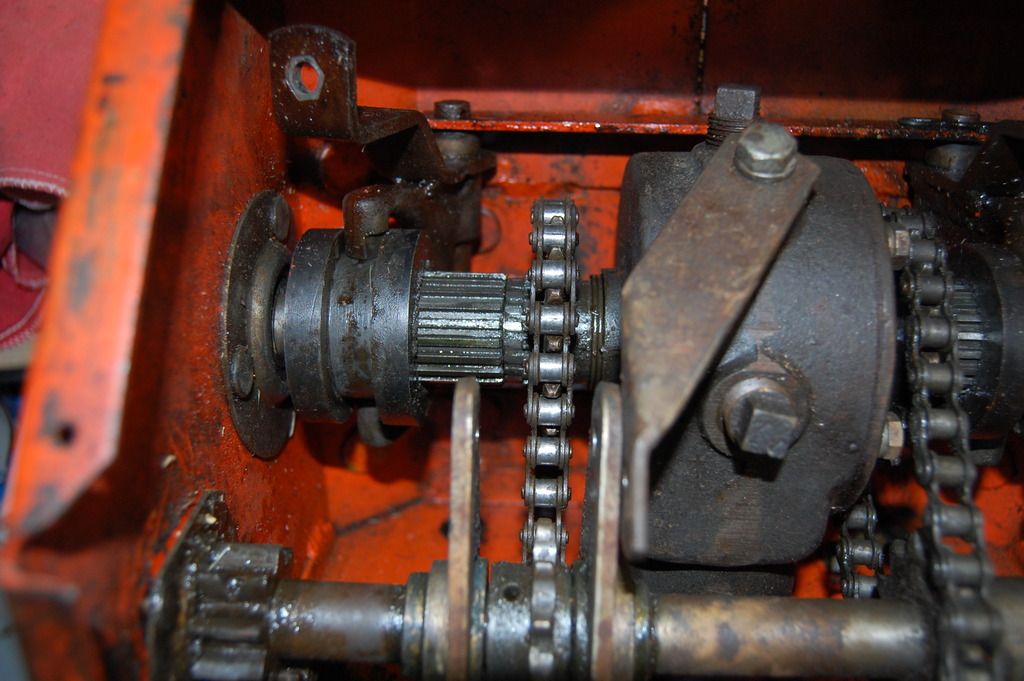

I will post pictures of the entire set up when I start to look into it.
YSHSfan is offline
post #8 of 26 Old 06-23-2016, 10:19 PM Thread Starter
Senior Member

Join Date: Jun 2014
Location: Shoreline, CT
Posts: 3,446
Post Thanks / Like
Thanks (Given): 103
Thanks (Received): 375
Likes (Given): 466
Likes (Received): 478
Not too good news.....

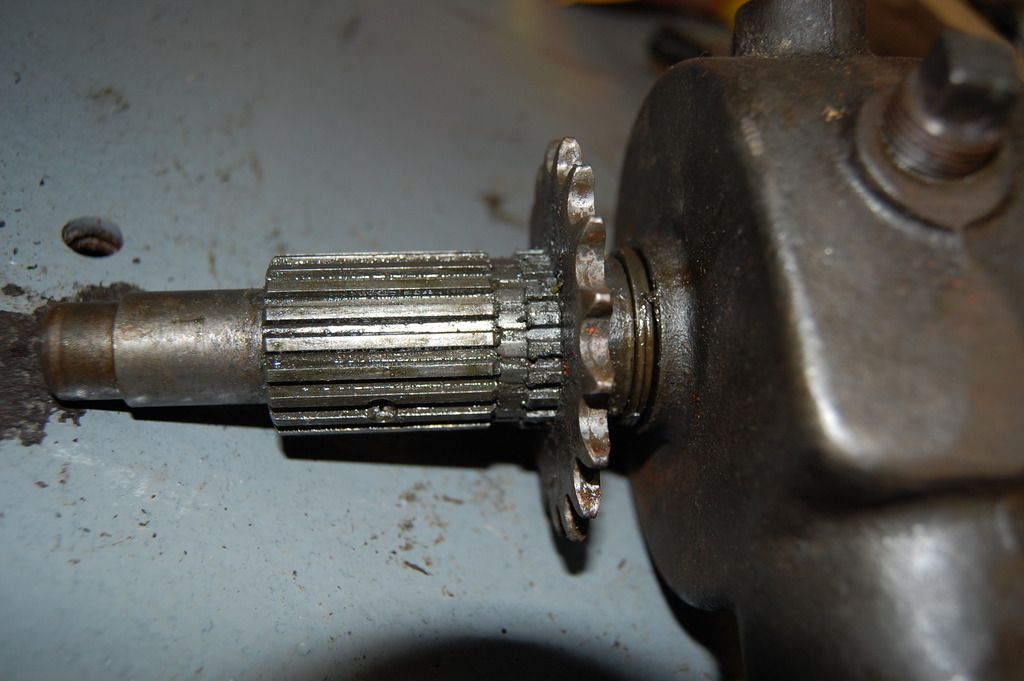

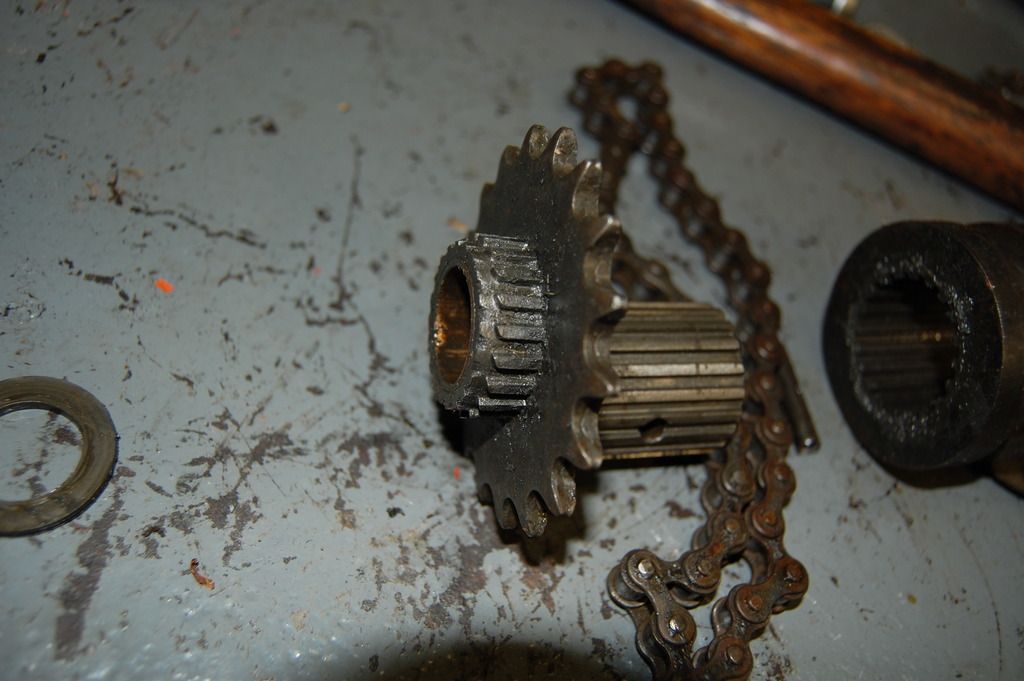

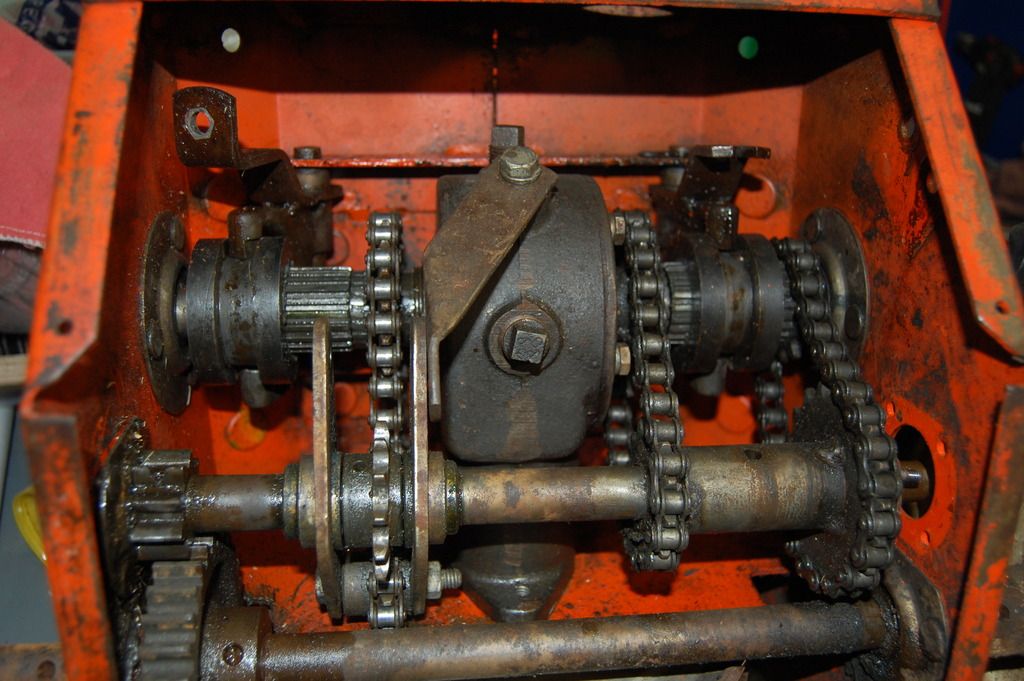

Today I had some spare time and decided to look into the 10M gearbox. Not too good news, I have 2 worn/stripped outer gears (for forward speeds) but the worst part is the reduction gears are also shot (lack of lubrication I'm pretty sure).

I will have too look/think about the options that I have to bring it back to life......


















YSHSfan is offline
Post Thanks / Like - 0 Thanks, 1 Likes, 0 Dislikes
Likes scrappy liked this post
post #9 of 26 Old 06-28-2016, 10:11 AM
Senior Member

Ray 1962 10ML60's Avatar

Join Date: Oct 2011
Location: Long Island
Posts: 581
Post Thanks / Like
Thanks (Given): 24
Thanks (Received): 34
Likes (Given): 15
Likes (Received): 23

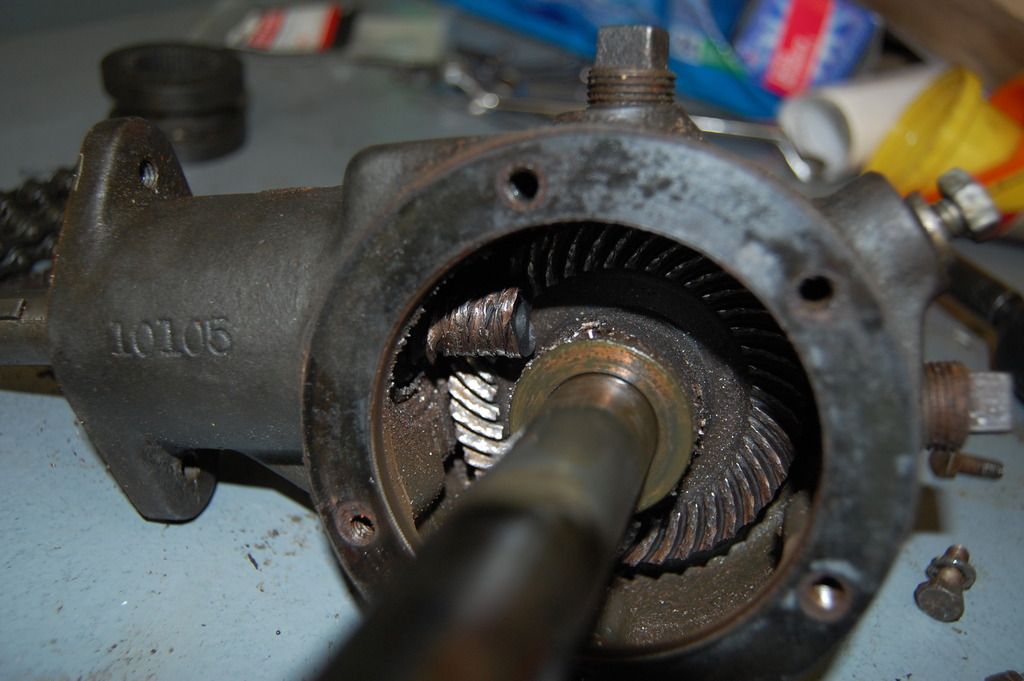

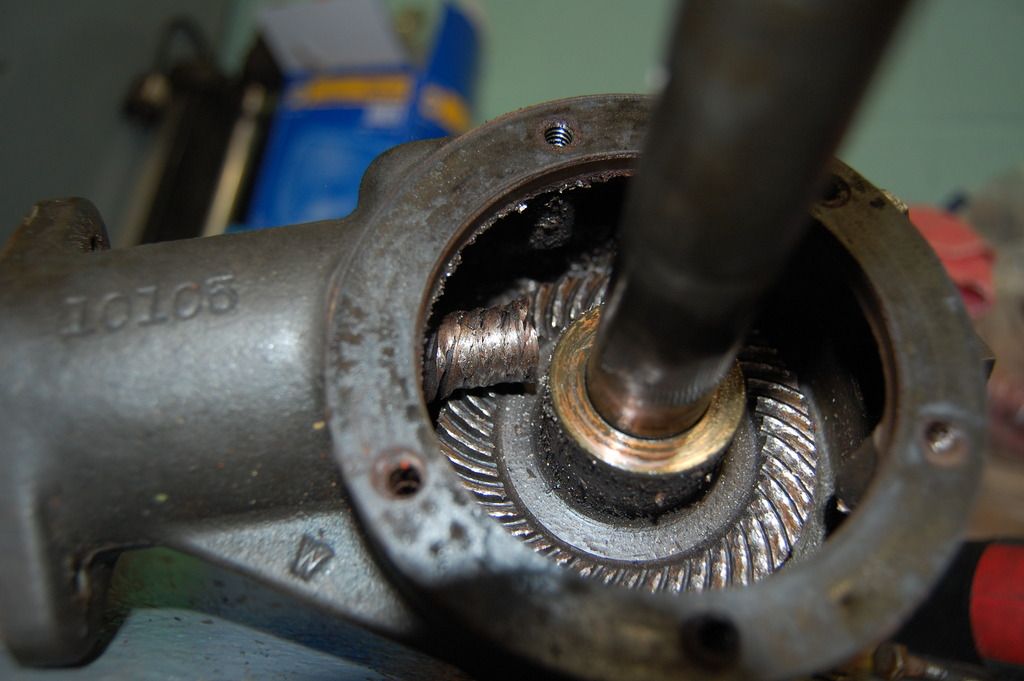

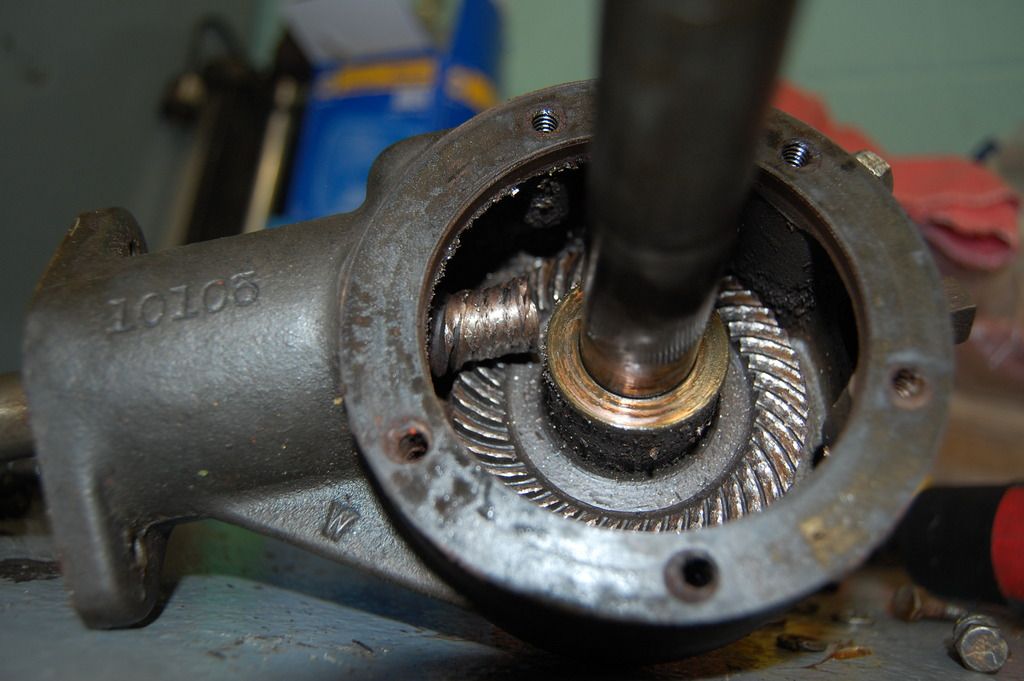

Do you think you can use some old front auger gearbox parts (specifically the gears) in that drive gearbox? That part number 10105 on the housing is the same housing number as the old auger gearboxes. Maybe the internals will match up? Obviously the shaft lengths are going to be different, but maybe the gears are the same?
You could always so the friction disc conversion...would be cool to keep it orig though.
Have no ideas on those outer gears though, ugh!

Ray
1962 Ariens 10ML60
1979 Toro 524
1975 MTD Snowflite 4/22

Last edited by Ray 1962 10ML60; 06-28-2016 at 10:22 AM.
Ray 1962 10ML60 is offline
post #10 of 26 Old 06-28-2016, 12:29 PM Thread Starter
Senior Member

Join Date: Jun 2014
Location: Shoreline, CT
Posts: 3,446
Post Thanks / Like
Thanks (Given): 103
Thanks (Received): 375
Likes (Given): 466
Likes (Received): 478
Quote:
Originally Posted by Ray 1962 10ML60 View Post
Do you think you can use some old front auger gearbox parts (specifically the gears) in that drive gearbox? That part number 10105 on the housing is the same housing number as the old auger gearboxes. Maybe the internals will match up? Obviously the shaft lengths are going to be different, but maybe the gears are the same?
You could always so the friction disc conversion...would be cool to keep it orig though.
Have no ideas on those outer gears though, ugh!
That is exactly what I am hoping Ray, to use the large gear of an early (60-64) auger gearbox and its impeller shaft (properly machined to match the damaged one).
I am working on getting a spare 60-64 gearbox (10105 casting numbers).
The outer gears may still be usable, Ill find out about it when I reassemble it.

I really want to keep the drive train as the original design and not go for a friction disc.

I will post as progress is made.
YSHSfan is offline
