Craftsman 5/23 issues on repair

I acquired a old Craftsman for my girlfriend that's in ok shape but is missing the starter pull cord and I ordered the one supposedly for it but it did not fit and the drive cup was also too big for the pull starter. The model is 536.886500 with code#7334D With these numbers I keep getting a starter with the screws that go in the sides of it but this one has 4 threaded studs on the engine to mount the starter, Only one that looks to fit is one from a 8hp Tecumseh engine and this one is supposed to be a 5hp so I am at a loss. Hopefully someone here can help me find the right one, I just hope it runs once I can try to start it.

Thank you

OH I have the one with the wheels not the tracks.
Dauntae is online now
Sponsored Links
Advertisement

post #2 of 16 Old 11-10-2016, 08:17 PM
Senior Member

Join Date: Mar 2015
Location: nova scotia-south shore - ave annual snowfall 199.4 cm ( 78.5 ")
Posts: 2,325
Post Thanks / Like
Thanks (Given): 73
Thanks (Received): 157
Likes (Given): 366
Likes (Received): 597
Garage
what are the numbers on the engine itself ?

24 " 1967? Ariens Sno thro
28 " Ariens Sno Tek
Toro CCR ss
1966 Gravely LI Walk behind with dog eater

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
nwcove is online now
post #3 of 16 Old 11-10-2016, 10:33 PM Thread Starter
Senior Member

Join Date: Nov 2016
Location: Massachusetts
Posts: 1,631
Post Thanks / Like
Thanks (Given): 12
Thanks (Received): 110
Likes (Given): 112
Likes (Received): 254
The tag on the engine was missing, Could not find any other numbers, Tried to add pics but need more post count.

Last edited by Dauntae; 11-10-2016 at 11:15 PM.
Dauntae is online now
post #4 of 16 Old 11-10-2016, 11:31 PM
Senior Member

Grunt's Avatar

Join Date: Nov 2013
Location: New Lenox
Posts: 1,997
Post Thanks / Like
Thanks (Given): 248
Thanks (Received): 287
Likes (Given): 2895
Likes (Received): 536
Hello and welcome to SBF Dauntae. I believe your motor is a Tecumseh and there are engine numbers "stamped" into the top of the recoil shroud right in front of the spark plug. If you have electric start, the push button switch will have to be removed to see the numbers. Most Sears engine numbers start with a 143.XXXXXX and can be converted to a Tecumseh number by looking in the back of the engine service manual found "Here".

Toro 8/24 (38080) 1989
Toro 721-QZR (38743) 2015 (Hemi Predator Power)

Experience is something you don't get until just after you need it.
Grunt is online now
post #5 of 16 Old 11-11-2016, 12:16 AM Thread Starter
Senior Member

Join Date: Nov 2016
Location: Massachusetts
Posts: 1,631
Post Thanks / Like
Thanks (Given): 12
Thanks (Received): 110
Likes (Given): 112
Likes (Received): 254
The Sears number was on it but NO engine info just the model of the craftsman which I looked at a conversion of which engine it was supposed to have but it came up with 143.784032 but on the parts breakdown it had the pull starter that the screws go into the side of the starter, whereas this has 4 studs that go through the face of the starter (for a lack of a better term to use) it is held on with nuts so it was a no go with that number for finding the right starter to fit. I wish it would let me post pics already.
Dauntae is online now
post #6 of 16 Old 11-11-2016, 12:21 AM Thread Starter
Senior Member

Join Date: Nov 2016
Location: Massachusetts
Posts: 1,631
Post Thanks / Like
Thanks (Given): 12
Thanks (Received): 110
Likes (Given): 112
Likes (Received): 254
The Sears number was on it but NO engine info just the model of the craftsman which I looked at a conversion of which engine it was supposed to have but it came up with 143.784032 but on the parts breakdown it had the pull starter that the screws go into the side of the starter, where as this has 4 studs that go through the face of the starter (for a lack of a better term to use) it is held on with nuts so it was a no go with that number for finding the right starter to fit. I wish it would let me post pics already. It would be so much easier to get help on this one. From what I understand, there were two versions and the older one was not put into the listings and books but was similar but had a few different parts.
Dauntae is online now
post #7 of 16 Old 11-11-2016, 12:09 PM Thread Starter
Senior Member

Join Date: Nov 2016
Location: Massachusetts
Posts: 1,631
Post Thanks / Like
Thanks (Given): 12
Thanks (Received): 110
Likes (Given): 112
Likes (Received): 254
For some reason a few replies seem to not be posting from last night, Hopefully my post count will allow pics now.
[IMG][/IMG]
[IMG][/IMG]
Dauntae is online now
post #8 of 16 Old 11-11-2016, 12:59 PM
Senior Member

Grunt's Avatar

Join Date: Nov 2013
Location: New Lenox
Posts: 1,997
Post Thanks / Like
Thanks (Given): 248
Thanks (Received): 287
Likes (Given): 2895
Likes (Received): 536
Use a wire brush in this area to find the engine numbers. Newer motors had stickers on the recoil shroud with engine numbers.
Attached Thumbnails
Click image for larger version

Name:	5hp.jpg
Views:	26
Size:	238.7 KB
ID:	91674

Toro 8/24 (38080) 1989
Toro 721-QZR (38743) 2015 (Hemi Predator Power)

Experience is something you don't get until just after you need it.
Grunt is online now
post #9 of 16 Old 11-11-2016, 03:02 PM
Senior Member

bad69cat's Avatar

Join Date: Nov 2015
Location: Cedar Rapids, Iowa
Posts: 1,237
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 88
Likes (Given): 127
Likes (Received): 277
I think any HK 5 Hp Tecumseh 4 bolt one word work for that. Tecumseh snowblower Ariens starter pull start recoil 590420a 590706 replacement | eBay




I am deathly allergic to shovels!


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
bad69cat is offline
post #10 of 16 Old 11-11-2016, 03:33 PM Thread Starter
Senior Member

Join Date: Nov 2016
Location: Massachusetts
Posts: 1,631
Post Thanks / Like
Thanks (Given): 12
Thanks (Received): 110
Likes (Given): 112
Likes (Received): 254

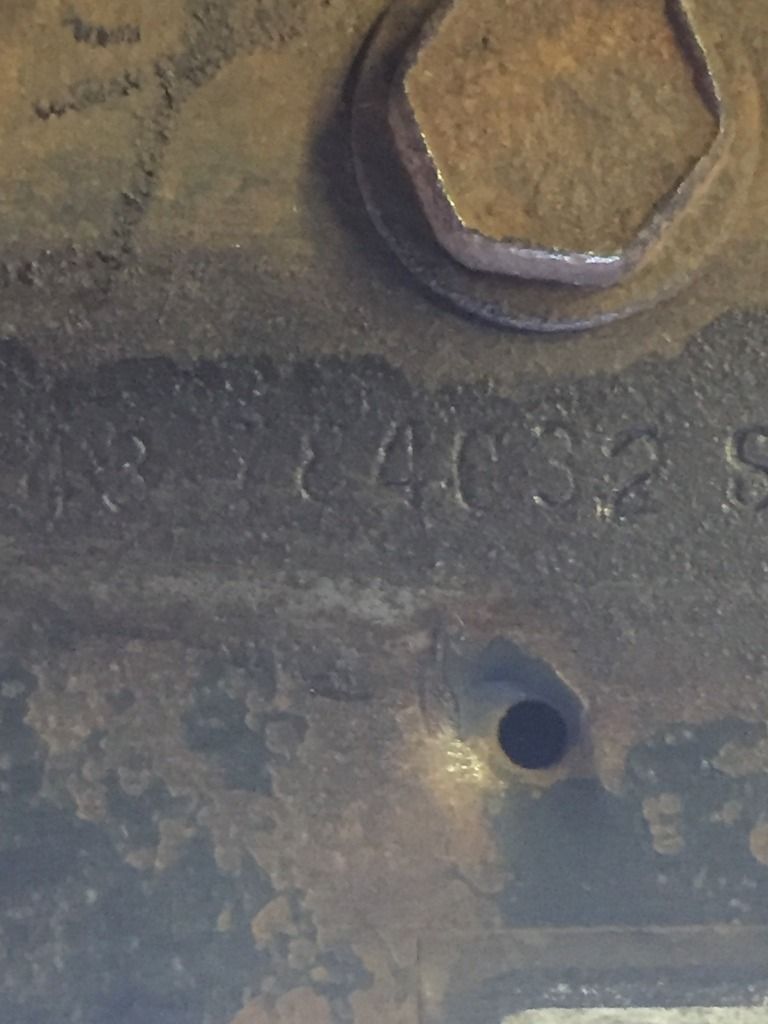

One thing I think may have happened it someone at some point changed the starter cup because the one on it seems much larger and is NOT rusty so I'm thinking it isn't the one that belongs, I'll go and hit it with a brush now and see if I can find it. OK I wire brushed and used a sharpie to help bring out the numbers, 143.784032 well pulling up the sears parts it needs the pull starter 590577 and is no longer available and none on eBay that I can find ATM so the search continues, You have been very helpful, Thank you very much.
