How to: Preator two shaft engine

I have been working on this project, just to see if I could do it. I spent days, on the internet, trying to find a basic, generic, cast aluminum box, that was narrow. I wanted to save space, so I would not have to extend the engine crankshaft, any more than need be. Only found one, and it was not cost effective.

Started looking through my engine parts boxes, and found 2 Wisconsin BKN oil pans. Right size, but would require a back-plate to complete the gear box.

I used a Tecumseh H-60 crankshaft gear and cam shaft. By turning the lobes, off the cam shaft, and installing it backwards, it gave me the extended 2ed shaft that I needed. The crankshaft gear remained stock. This will become a book, if I keep writing details, so here are some photos. ---- John

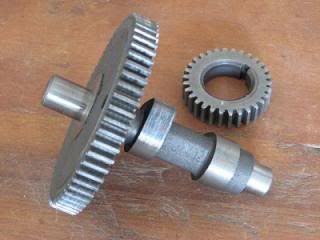

Stock Tec. H-60 camshaft + Crankshaft gear.

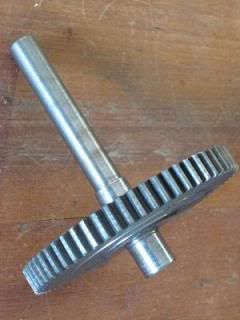

Camshaft, after machining.

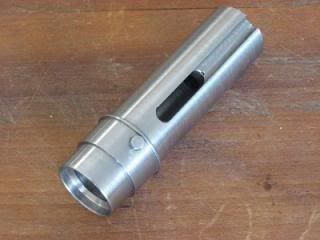

3/4" to 1" crankshaft adapter. Also holds gear, seals and a locater bearing.

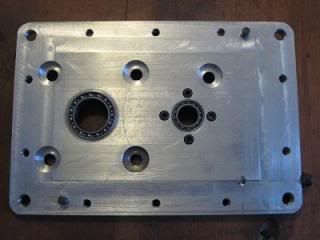

Back-plate, after machining.

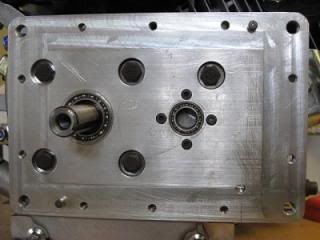

Back-plate mounted.

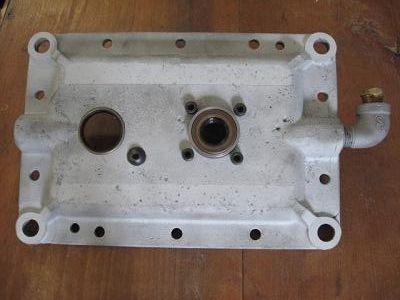

Side cover (oil pan), after machining.



Finished prototype. Will add a flat, or keyway to the small shaft as needed, and cut to proper length.
Waterlooboy2hp is online now
Post Thanks / Like - 1 Thanks, 0 Likes, 0 Dislikes
Thanks Kiss4aFrog thanked for this post
Sponsored Links
Advertisement

post #2 of 18 Old 03-21-2014, 09:24 PM
Moderator

Shryp's Avatar

Join Date: Jan 2011
Location: Cleveland, OH
Posts: 4,159
Post Thanks / Like
Thanks (Given): 1
Thanks (Received): 196
Likes (Given): 6
Likes (Received): 250
Hey, nice job. The one small problem I see is most of the Tecumseh's had the camshaft PTO up slightly higher then the crankshaft. Not a major problem and can probably be fixed with different size belts.

Can't wait to see it in use on something.

Any plans to mass produce and sell the adapters?

Please direct all snow blower questions to the forums and not to me with PMs.
Shryp is offline
post #3 of 18 Old 03-21-2014, 10:59 PM Thread Starter
Senior Member

Waterlooboy2hp's Avatar

Join Date: Nov 2011
Location: York Pa.
Posts: 142
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 13
Likes (Given): 0
Likes (Received): 27
Although it would be an easy fix, you had me double checking the height of the pto cam shaft. I checked an H-50 and an H-60, and the center height of each shaft is the same, from the base of the engine. If the 7 and 8hp engines, share the same side cover, then they would be covered also. I know the H Tecumseh`s, under 5 hp. are not the same side cover.

I plan to build a 2ed unit, for a Predator 346. It is going on the only 2 shaft powered blower, that I have. The 346, already has a 1" PTO, so the only change, will be a short adapter, to hold the oil seals. The cam part, will be the same.

Pretty sure I can use the wider H-60 side cover, for the gear box, on the 346 cc engine. The crankshaft is 1" longer to start with. It will just mean, sliding the engine back a bit more, on the blower frame. -- John

=============================================
Quote:
Originally Posted by Shryp View Post
Hey, nice job. The one small problem I see is most of the Tecumseh's had the camshaft PTO up slightly higher then the crankshaft. Not a major problem and can probably be fixed with different size belts.

Can't wait to see it in use on something.

Any plans to mass produce and sell the adapters?
Waterlooboy2hp is online now
post #4 of 18 Old 03-22-2014, 05:12 AM
Moderator

Join Date: Mar 2011
Location: Minnesota
Posts: 2,612
Post Thanks / Like
Thanks (Given): 4
Thanks (Received): 137
Likes (Given): 14
Likes (Received): 322
Twin shaft

Very interesting! Too bad they can't be bought that way in the first place.
HCBPH is offline
post #5 of 18 Old 03-26-2014, 02:51 PM
Member

Hankfard's Avatar

Join Date: Feb 2014
Location: Spokane, WA
Posts: 32
Post Thanks / Like
Thanks (Given): 15
Thanks (Received): 4
Likes (Given): 14
Likes (Received): 5
VERY cool! Subscribed.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
"Dancing Girl" -
Craftsman II: 5/23 Trac-Drive 536.884810
Engine: Sears 143794053 aka Tecumseh HS50-67291H
Hankfard is offline
post #6 of 18 Old 03-26-2014, 03:41 PM
Banned

Join Date: Feb 2014
Location: Newington, CT
Posts: 2,029
Post Thanks / Like
Thanks (Given): 32
Thanks (Received): 92
Likes (Given): 446
Likes (Received): 148
thats awesome! im sure if you mass produced it it would sell great!
43128 is offline
post #7 of 18 Old 03-27-2014, 05:03 PM Thread Starter
Senior Member

Waterlooboy2hp's Avatar

Join Date: Nov 2011
Location: York Pa.
Posts: 142
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 13
Likes (Given): 0
Likes (Received): 27
[QUOTE=

I plan to build a 2ed unit, for a Predator 346. It is going on the only 2 shaft powered blower, that I have. The 346, already has a 1" PTO, so the only change, will be a short adapter, to hold the oil seals. The cam part, will be the same.

Pretty sure I can use the wider H-60 side cover, for the gear box, on the 346 cc engine. The crankshaft is 1" longer to start with. It will just mean, sliding the engine back a bit more, on the blower frame. -- John

=============================================

Had planned to buy the Predator 346 in mid may, before my last 25% off coupon expired. Looked online, and saw that the $249.00 sale price was only good while supply lasts. Called my local store, and they only have 1 left in stock.

Decided to order one on line now. For $6.99, it will be delivered to my house, and I won`t have to try and wrestle the box, into and out of the back seat of a Toyota Tercel . Final price, with sales tax is $206.14.

Anyway, I have decided to use a Tecumseh H-60 side cover, for the 2 shaft unit, on the 346. I have been as busy as a bumble bee, stuck in a tar bucket, for the past few days. Got all my ducks in a row, as far as parts design and made some drawings to follow. Just waiting for some 3/8" aluminum flat stock, 2" round stock, and some bearings and seals, to come in the mail.

After seeing my design, for the use of an H-60 side cover on the 346. I think I can adapt it to the 212 also. My original prototype for the 212, may already be obsolete.

Here is the "beginning" only, of the rework, on the H-60 side cover.---John

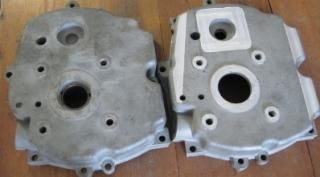

Before & After, on the inside ---



Before & After on the outside ---


Last edited by Waterlooboy2hp; 02-28-2015 at 06:25 PM. Reason: replacing missing photos
Waterlooboy2hp is online now
post #8 of 18 Old 05-15-2014, 11:25 PM Thread Starter
Senior Member

Waterlooboy2hp's Avatar

Join Date: Nov 2011
Location: York Pa.
Posts: 142
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 13
Likes (Given): 0
Likes (Received): 27
[QUOTE=Waterlooboy2hp;206650][QUOTE=

I plan to build a 2ed unit, for a Predator 346. It is going on the only 2 shaft powered blower, that I have. The 346, already has a 1" PTO, so the only change, will be a short adapter, to hold the oil seals. The cam part, will be the same.

Pretty sure I can use the wider H-60 side cover, for the gear box, on the 346 cc engine. The crankshaft is 1" longer to start with. It will just mean, sliding the engine back a bit more, on the blower frame. -- John

================================

Here are the fruits of my labor. Ran into a few small problems, that I had not for-seen, but was able to work them out. Working out the problems, is what makes an idea interesting. - John



I made 4 bolt-in flanges, for the bearings and seals, on the back-plate and H-60 side cover.

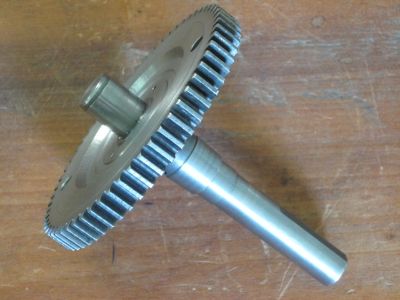

The modified H-60 cam.

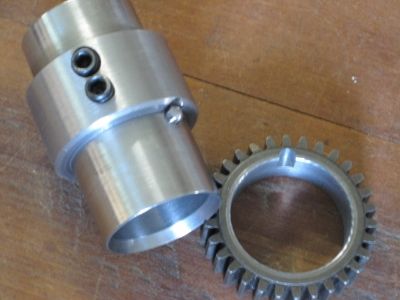

Crankshaft adaptor for seals, bearings and modified H-60 crankshaft gear.


New drive pulley, with hub extension. (could not use original, long hub pulley, due to rust) -- Extension was made from an old chain sprocket.

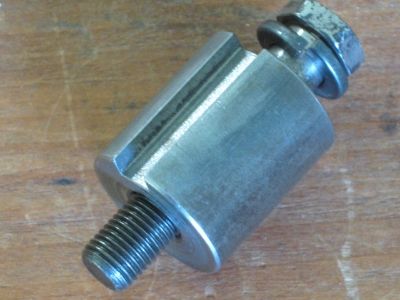

Crankshaft extension. (not really needed, but I like overkill)

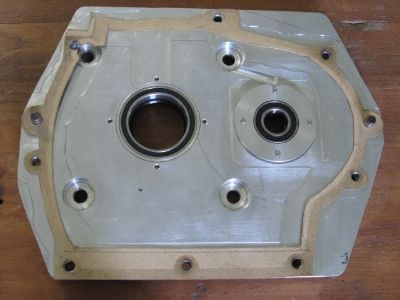

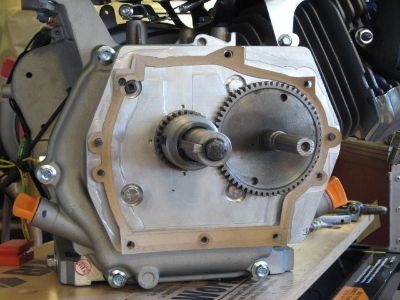

Back-plate, with gearing in place.

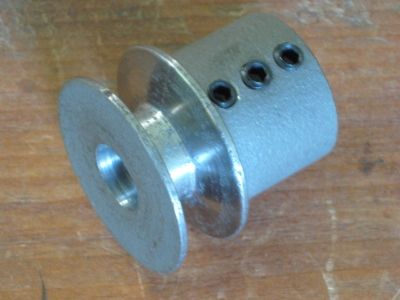

Original pulley, for the added output shaft. Just added 2 more set screws.


That`s all folks.
Waterlooboy2hp is online now
post #9 of 18 Old 05-16-2014, 06:41 AM
Senior Member

micah68kj's Avatar

Join Date: Oct 2011
Location: S. C. Pa. 39.755928, -77.577766
Posts: 4,848
Post Thanks / Like
Thanks (Given): 135
Thanks (Received): 267
Likes (Given): 358
Likes (Received): 903
You do some really nice work John. If I need machining done I'll be up to see you!
Seriously, that is skme very fine, thoughtful machine work. You should be proud.

Joe

Sent from my junky old Hisense 7" tablet that I can barely see.
Toro 724
Toro CCR 3650E
Toro 5/21 sold
Ariens 5/22 ss ..Sold
Ariens Sno Tek 7/24 sold.
Old green plastic snow shovel... Sent.to shovel Heaven
Old quarry shovel for ice.
New.green shovel
micah68kj is offline
post #10 of 18 Old 05-17-2014, 02:27 PM
Senior Member

Spectrum's Avatar

Join Date: Jan 2013
Location: Southern Maine
Posts: 725
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 40
Likes (Given): 10
Likes (Received): 149
Nice job! What do you plan for lubrication?

Pete
