Craftsman 247.887001 HF Predator Repower

Good Evening all,

Wanted to put something together for those who may have this or similar Craftsman / MTD models, 247887001 247.887001, whom have had enough of there tecumseh.

This isnt meant to be a walk through, but an idea of what you will come across.

Removing the old motor - 2 bolts are obstructed, 2 arent.

Standing the blower on the bucket will be best, as you will need to work on the "axle", a cog on the axle, the "Driveshaft or Differential" and another gear on that.

First is first, i took off the wheel on the left side of the blower. Took out the shear pin that held the cog in place on the axle, and then slid it all to the left so the axle falls into the chassis.

Second - i basically did the same with the drive shaft. However, you need to knock a roll pin out to free the gear on this bar. Once that is done, there is a cotter pin and washer that holds it in place on the right side of the chassis. Undo these and put them in a safe place. Slide it to the left so that half of it falls in.

Your obstructed bolts are not able to be reached.

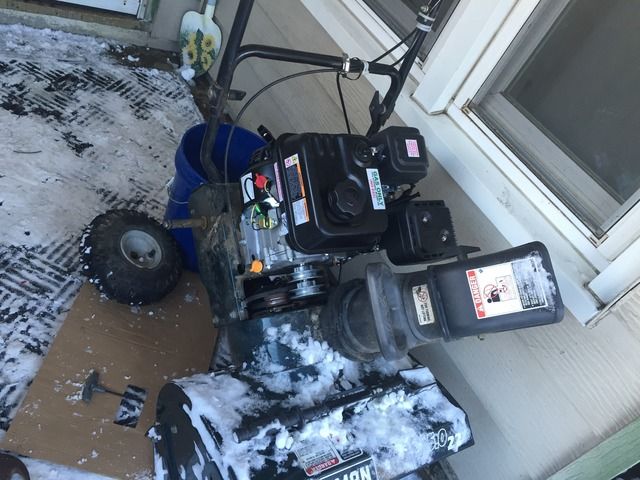

Mounted the predator using new hardware. Used this to get an idea of what i would need to do to line up the pulleys to the drive and auger pulleys.


Pick up 3" OD, 3/4" ID pulleys, for the predator, since the 7/8" ones on my shaft were 2 piece and had a key built into the pulleys themselves.... They wouldnt be easily reused.
OEM OD is 2 ad 7/8" btw... so this is a bit over driven.

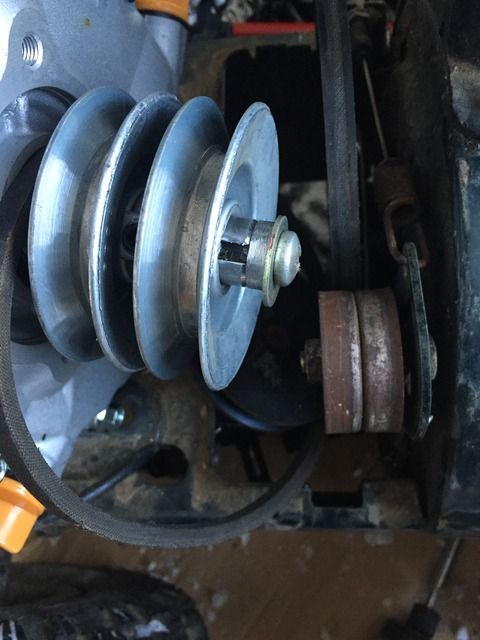

Figure out what orientation the pulley would wind up in. To be honest, i need to loose a couple mm to bring the pulley at the furthest end of the shaft in more to better align with auger drive pulley. I may attempt to flip the outside pulley to see if it aligns better.


I made a spacer to extend the shaft a tiny bit

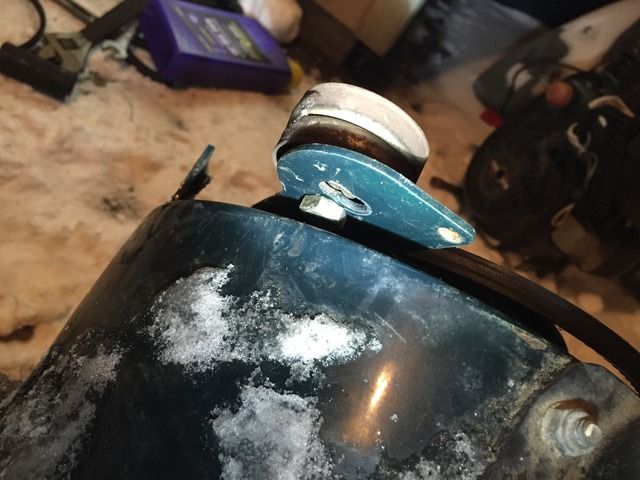

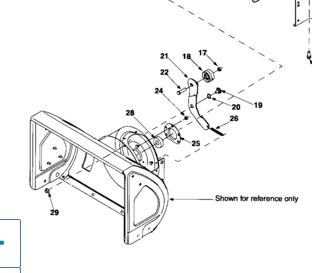

With a slightly larger pulley then stock, i had to redrill the auger clutch#21, for where the idler pulley#18 needed to sit.


this is the hardest part i think. To get the clutch arm out, you need to completely dissasemble the guts of the auger.

First you have to undo the 13mm holding the splined auger drive pulley. Pull everything apart.

Then, undo the two 13mm that hold the auger baring captive to the bucket.

Undo the two 13mm machine bolts on both side of the auger bucket (4 total)

you can not take it out.

To take the clutch arm out, you undo the 24 that is in the bucket that holds 19. Note the orientation of the washer.



(that doubled hole is OEM. This is the idler pulley re drilled.)
