Simplicity 860se Rejuvenation

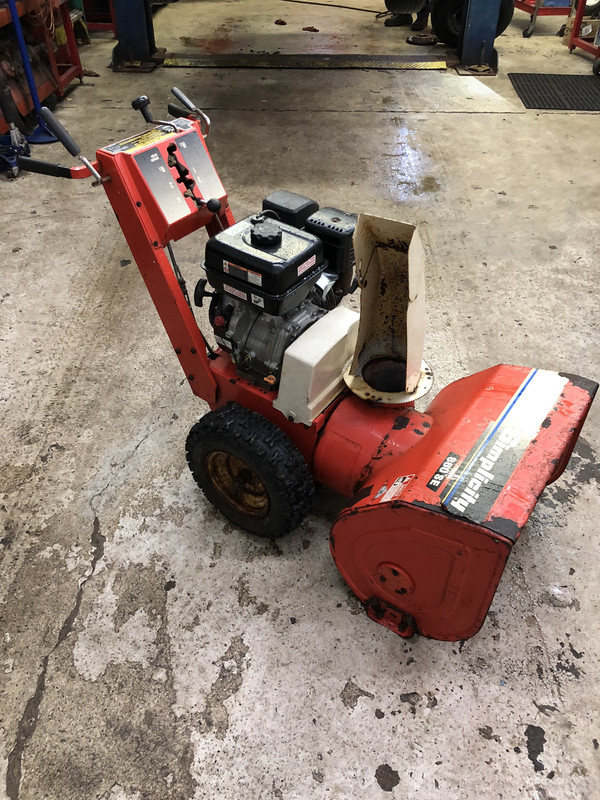

I have a 80s-90s 860se. It’s a rat, it was cheap, and I’m bringing it back to life. The focus is on a mechanical restoration, a sanding, and a coat of paint.

I like older snowblowers with some vintage to them. But not to vintage. This is a good compromise, and it’s about as old as me. But it needed a ton of help, a bit more then I anticipated. Probably should have passed this one up, oh well.




The bucket was a rusty disaster, and the impeller and augers were rusted in place. Lots and lot of heat and an air hammer were nessesary to dismantle the business end of this thing.

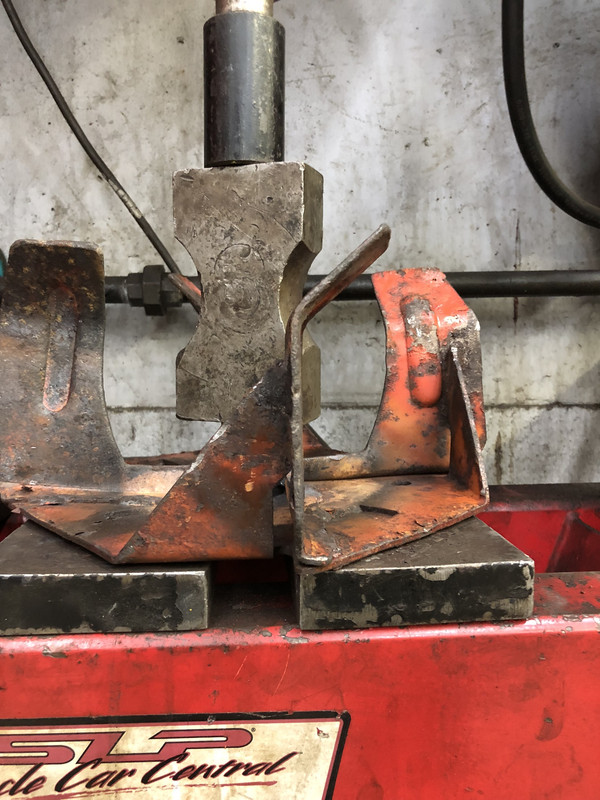

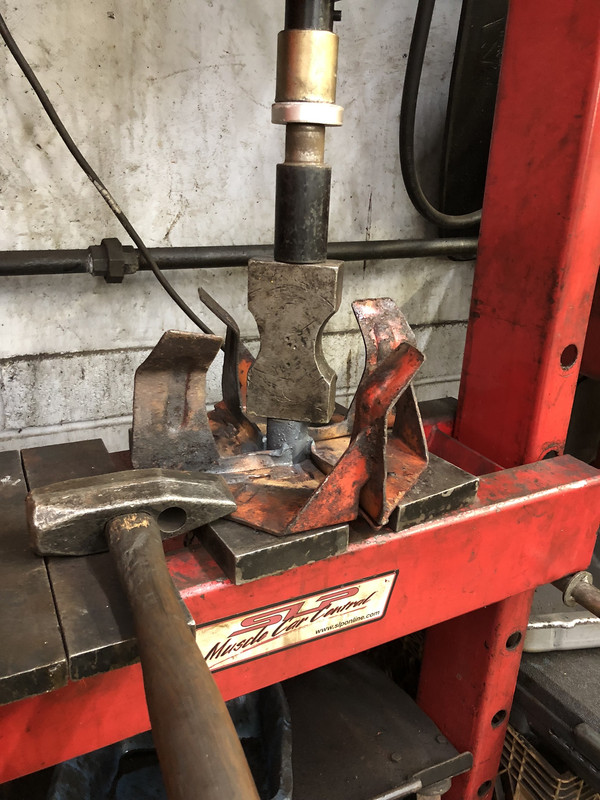

Not a single blade on the impeller was straight. Using a press as a fixture for holding the impeller and a couple mini sledges I beat it back into shape. I essentially test and tuned the impeller back into a 1/8” of housing gap. Better then factory, I still added impeller seals.




The drive train is a wreck! Worn out bearings, worn out bushings, elongated bolt holes through shafts, and tons of slop. I wanted a project, well, I got one.

While the traction drive system is robust in design, it can clearly wear out. It’s nice to see sealed ball bearings supporting nearly everything. The problem the steel shafts ends that slip into the bearings inner race have worn out significantly. The OD is way off but I am not buying new shafts.

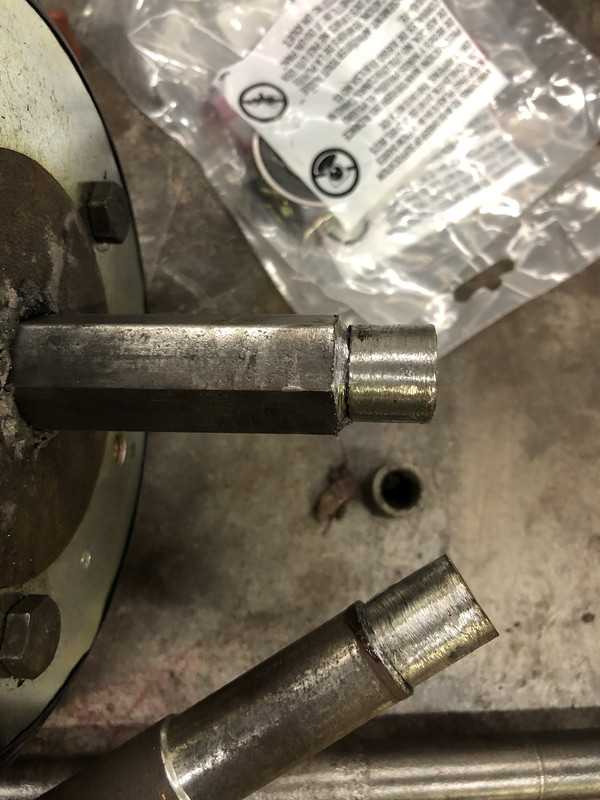

So I found some steel tube and fashioned up some shims. I ground the OD to match the bearing, and ground the shaft to match the shim and used an adhesive RTV to assemble. I though about using JB weld or loctite. It wouldn’t matter either way.

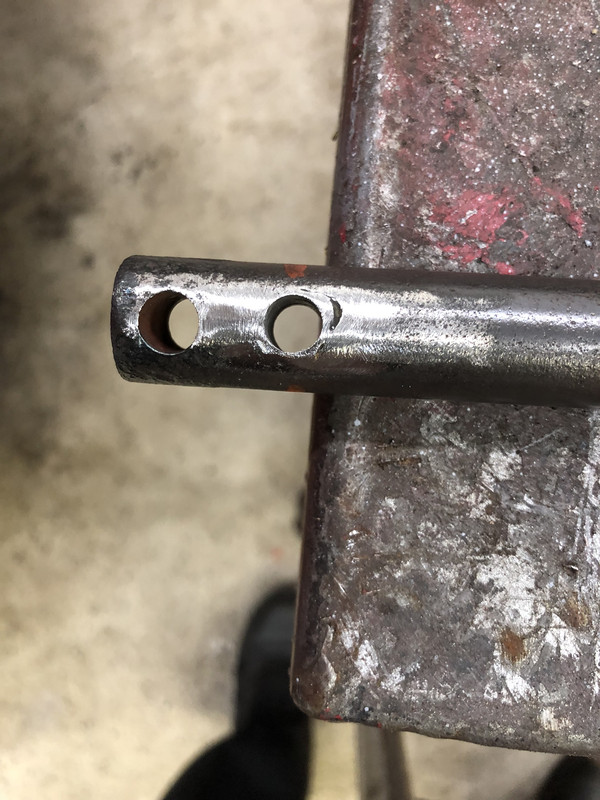

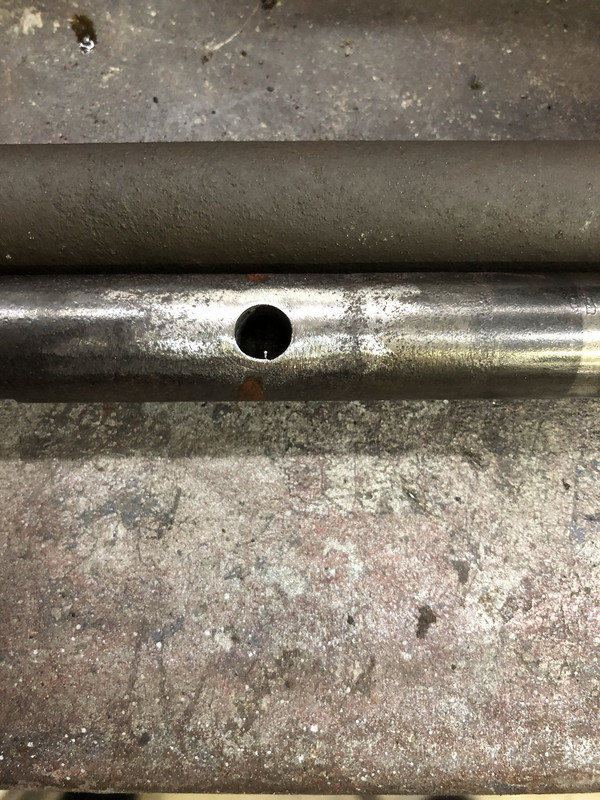

Next is the axle shaft. The wheel pin holes and the gear sprocket bolt hole are large ovals. Once again, more drivetrain slop. I welded the holes closed and re drilled new 5/16” holes. I also noticed the sprocket assembly and axle shaft have unused provisions for a woodruff key and it corresponds with the bolt hole. So that’s a no brainer, I’ll be using that to take the load off the sprockets fastening bolt.




That’s as far as I got today, hopefully I can reassemble everything tomorrow and move on the next phase.

Honda HSS1328AATD | Honda HS720 | Toro Powerlite | Simplicity 860se


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
drmerdp is offline
Post Thanks / Like - 0 Thanks, 2 Likes, 0 Dislikes
Likes classiccat, dbert liked this post
Sponsored Links
Advertisement

post #2 of 33 Old 02-01-2019, 07:13 PM Thread Starter
Senior Member

drmerdp's Avatar

Join Date: Feb 2014
Location: Northern NJ
Posts: 1,287
Post Thanks / Like
Thanks (Given): 6
Thanks (Received): 141
Likes (Given): 24
Likes (Received): 292
Update time.

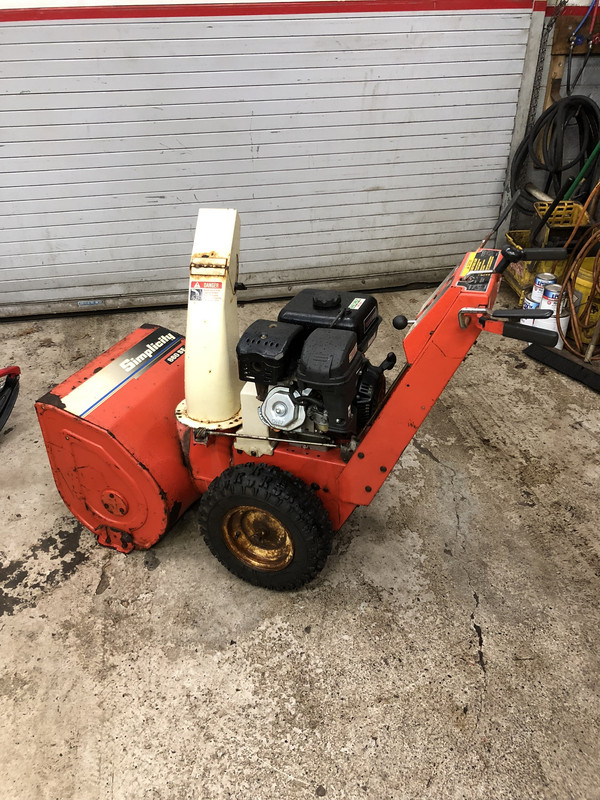

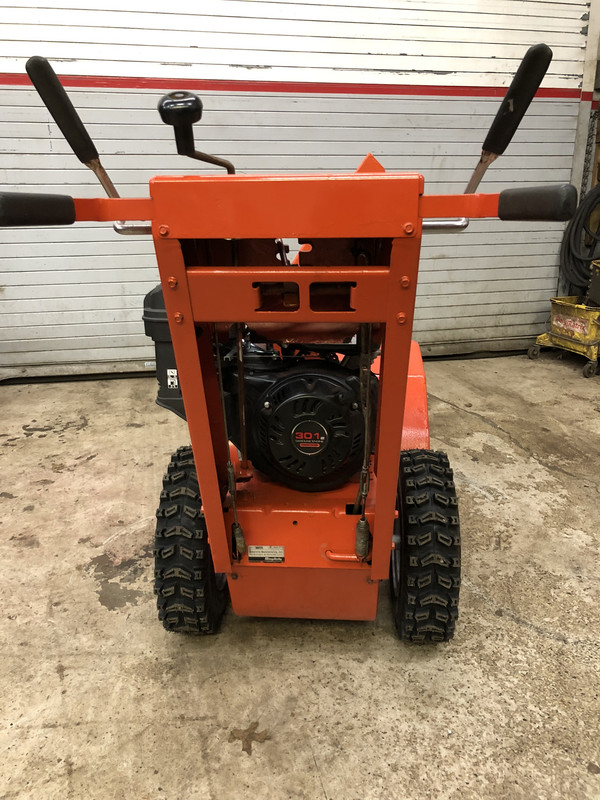

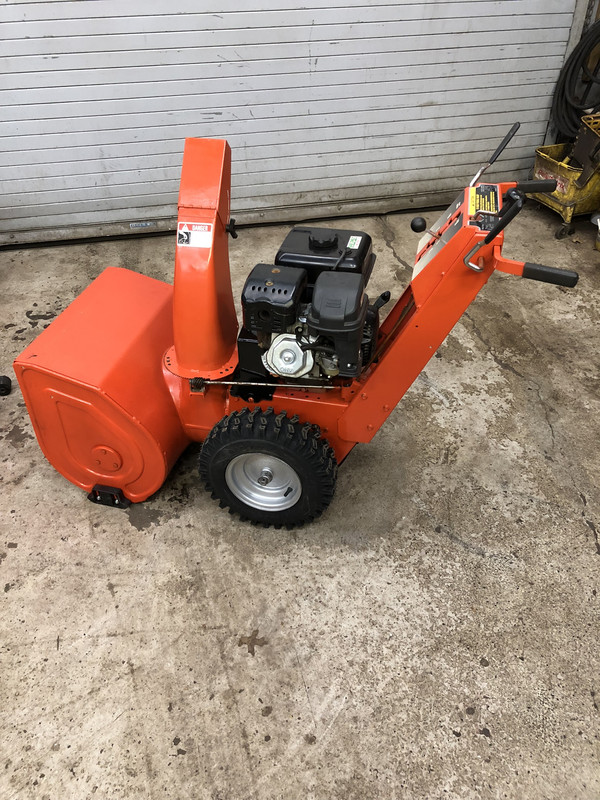

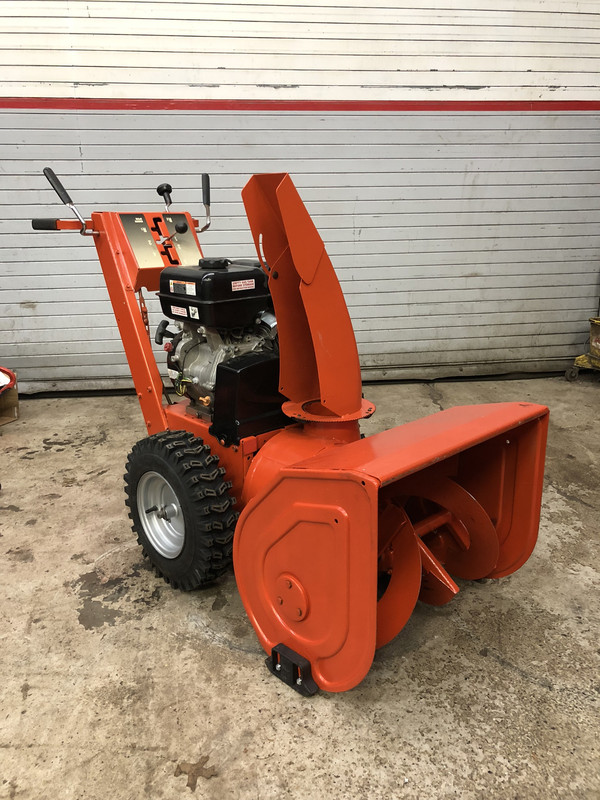

I got a lot done on the old girl. I literally went through the entire machine almost everything was out of whack but it’s back together in perfect form.

Full paint job, new tires, new bearings, new bushings, adjustments, adjustments, grease, skid shoes, shave plate.... Fun fact, my old Falline poly skids from my HSS Honda Fit perfect.

BTW duplicolor engine enamel in Chevy Orange-Red is nearly a dead nuts match to the original “deep orange” for less the half the price. And covers very nicely.

I have the predator 301 spinning 3800rpms, yielding an Impeller speed of 931rpms. I haven’t had any snow to test the machine with, but I’m betting that there’s plenty of room for improvement in that department. I’ll be looking into a different pulley combination or maybe even adding simplicity’s Power Boost system.

I’ve also contemplated repowering my old little wonder walkbehind blower with the 301 and picking up a predator 420 for the simplicity.

Anyone know if the 420 will physically fit on a 24” machine without the valve cover protruding beyond the width of the bucket??

I’d really like to add lights to the snowblower, but I’d have to gamble on retrofitting gx270 parts that might not work well. Untapped bosses, different crank tapers, and what not.

I also rejetted the carb from .036 to .037, it starts in 2 pulleys in 0 degree F and 1 pull above 15 degrees. I have an adjustable main jet I bought from eBay a while back that I might try out.








Little update time:

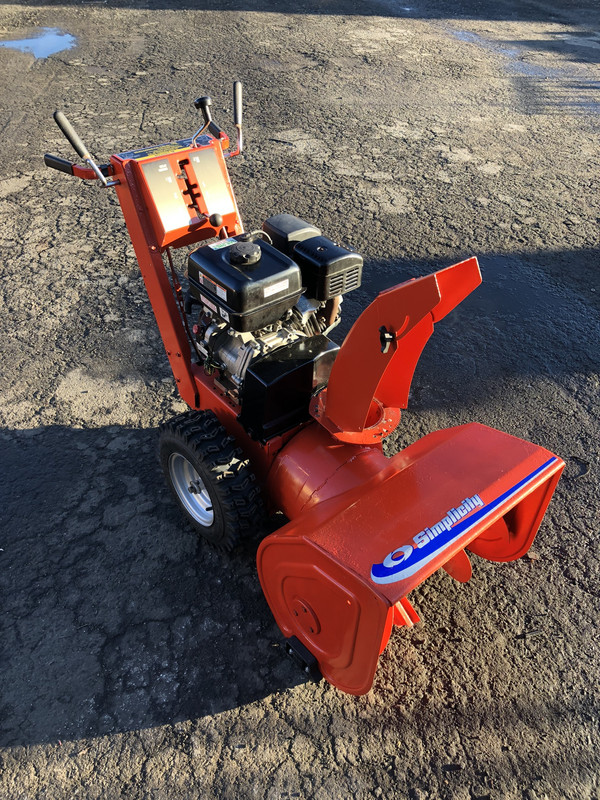

Got my added touch, a sticker from a newer, but still older simplicity pro.
