Predator 212 governor shroud

Today I installed this on my predator to try and keep governor linkage from icing up. I still need a guard on top between the muffler and air box. I will be working on that next.
Attached Thumbnails
Click image for larger version

Name:	image_1458326413009.jpg
Views:	160
Size:	120.0 KB
ID:	84817   Click image for larger version

Name:	image_1458326435357.jpg
Views:	153
Size:	117.2 KB
ID:	84825   Click image for larger version

Name:	image_1458326463089.jpg
Views:	140
Size:	91.4 KB
ID:	84833
LB522r is offline
Post Thanks / Like - 0 Thanks, 3 Likes, 0 Dislikes
Likes Grunt, Toro-8-2-4, Mike C. liked this post
Sponsored Links
Advertisement

post #2 of 16 Old 03-18-2016, 06:50 PM
Senior Member

Join Date: Mar 2015
Location: nova scotia-south shore - ave annual snowfall 199.4 cm ( 78.5 ")
Posts: 2,313
Post Thanks / Like
Thanks (Given): 73
Thanks (Received): 157
Likes (Given): 358
Likes (Received): 592
Garage
nice work !

24 " 1967? Ariens Sno thro
28 " Ariens Sno Tek
Toro CCR ss
1966 Gravely LI Walk behind with dog eater

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
nwcove is offline
post #3 of 16 Old 03-18-2016, 07:01 PM Thread Starter
Member

LB522r's Avatar

Join Date: Feb 2016
Location: South Dakota
Posts: 42
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 3
Likes (Given): 1
Likes (Received): 14
The front half is my old license plate.
LB522r is offline
post #4 of 16 Old 03-18-2016, 10:11 PM
Senior Member

Join Date: Dec 2013
Location: Massachusetts
Posts: 720
Post Thanks / Like
Thanks (Given): 52
Thanks (Received): 53
Likes (Given): 105
Likes (Received): 72
Nice work! A green machine in more ways than one. I a working on my own shroud and it is a work in progress. I will post pics when complete.

Current machines
Ariens 926LE

Yard Machine 22" upgraded with 6.5 HP Predator
Toro-8-2-4 is offline
post #5 of 16 Old 03-19-2016, 11:20 AM
Senior Member

Join Date: Feb 2015
Location: Long island
Posts: 274
Post Thanks / Like
Thanks (Given): 14
Thanks (Received): 16
Likes (Given): 44
Likes (Received): 50
Looks good, I did something similar. Do you have plans to cover the top?
Rob711 is offline
post #6 of 16 Old 03-19-2016, 11:26 AM Thread Starter
Member

LB522r's Avatar

Join Date: Feb 2016
Location: South Dakota
Posts: 42
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 3
Likes (Given): 1
Likes (Received): 14
I do have plans to cover the top. I built a box that covers the muffler and air box but I may not use it in fear it might get to hot. I may just cover the linkage and leave everything else uncovered
LB522r is offline
post #7 of 16 Old 03-19-2016, 02:59 PM
Senior Member

Join Date: Dec 2013
Location: Massachusetts
Posts: 720
Post Thanks / Like
Thanks (Given): 52
Thanks (Received): 53
Likes (Given): 105
Likes (Received): 72
From some of the prototyping I have been doing I have noticed when I covered the complete top of the muffler some exhaust gas would blow back under the muffler shield and then out the top vents. It did warm the area some but I did not run it enough to get a real good feel for how it would do under a variety of outdoor conditions. What persuaded me to not totally cover the vents was that I did not want a lot of exhaust gas getting under the shroud, leaving soot and ultimately being sucked into the air intake. I am running with out the filter. It seems like having water freeze in the carb is a rare event or possibility.

So far I have found that as long as I keep the linkages free of snow and water they run just fine. Water and slushy snow hitting the gas tank and running onto the linkages has been an issue. I am working on that as well.

Current machines
Ariens 926LE

Yard Machine 22" upgraded with 6.5 HP Predator
Toro-8-2-4 is offline
post #8 of 16 Old 03-19-2016, 03:18 PM
Senior Member

Join Date: Nov 2013
Location: Sask. Canada
Posts: 189
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 4
Likes (Given): 13
Likes (Received): 7
I live in an area where we can be blowing snow at -30 F or colder. The carburetor intake ideally needs warm air between 70-100 F. The heat radiating from the exterior of the muffler is all you need to warm the area inside the "stove" as we call it. With no air cleaner, I frown upon any exhaust gas going near the carburetor intake. Exhaust equal flame, so any backfire,,, Well that can't be good. I've put out air cleaner fires in vans from backfires. Happens!
So cover up those holes?
Mr Fixit is offline
post #9 of 16 Old 03-19-2016, 10:26 PM
Senior Member

Waterlooboy2hp's Avatar

Join Date: Nov 2011
Location: York Pa.
Posts: 143
Post Thanks / Like
Thanks (Given): 0
Thanks (Received): 13
Likes (Given): 0
Likes (Received): 27
Quote:
Originally Posted by Mr Fixit View Post
I live in an area where we can be blowing snow at -30 F or colder. The carburetor intake ideally needs warm air between 70-100 F. The heat radiating from the exterior of the muffler is all you need to warm the area inside the "stove" as we call it. With no air cleaner, I frown upon any exhaust gas going near the carburetor intake. Exhaust equal flame, so any backfire,,, Well that can't be good. I've put out air cleaner fires in vans from backfires. Happens!
So cover up those holes?
=============================================

Here is what I did and it has worked out very well. This was my prototype and I found , that the hot air intake adjustment was not needed. Construction of the unit, was to complicated to be considered an easy fix. This one is on a 212cc Predator. Found that I could leave the heat flow control wide open and only plug 2 of the 4 original cold air intake holes. The mix of the cold and hot air works well.




I decided to see if I could simplify the unit, with off the shelf parts. I was going to make a 2ed unit, to use on my 346cc Predator powered blower. Noticed that the plastic carb cover on the 346cc is only a single wall, while the 212cc engine has a double wall cover.

Came up with this version. Just a 1" conduit connector and a short piece of 1" conduit pipe. Simple and pretty easy to do. It works on the double wall 212cc engine also, but the location of the hole in the plastic cover is important, to make use of the supports, between the 2 walls. ---- John

This is the one on the 212cc engine with the double wall carb cover.

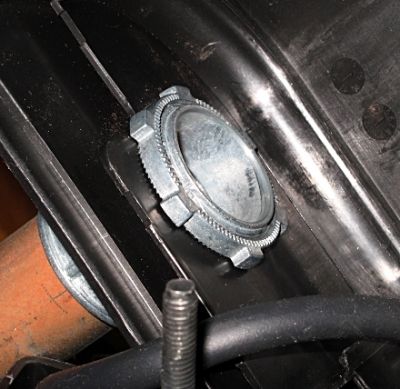

Inside the carb cover ---

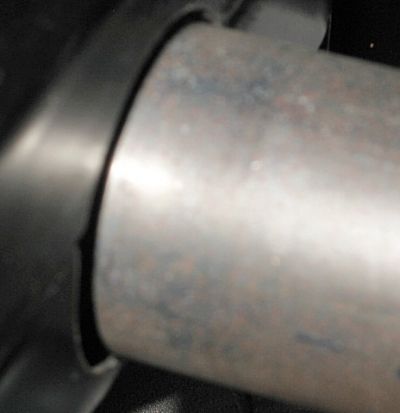

Tube stops just outside the muffler cover.



Used a 1 1/4" hole saw for both holes.
Waterlooboy2hp is online now
Post Thanks / Like - 0 Thanks, 2 Likes, 0 Dislikes
Likes YSHSfan, murf liked this post
post #10 of 16 Old 03-20-2016, 11:08 PM
Senior Member

Join Date: Dec 2013
Location: Massachusetts
Posts: 720
Post Thanks / Like
Thanks (Given): 52
Thanks (Received): 53
Likes (Given): 105
Likes (Received): 72
Here is what I have come up with so far. I have left the rear open so far. This way I can monitor what is going on in there. the top cover is Made from galvanized 26 Ga sheet steel. The cover is held on with 3 #10 screws which makes it easy to remove. The side/front governor cover is a .100 thick steel bar with a 90 degree bend. It is a bracket for a wood fence that you can buy in any fine hardware store. I sealed the gas tank to the cover with strips of foam weather stripping. Two layers.

heat does build up but does not seem to be too much.

Hopefully I can give it a field test tomorrow.
