I have a 1128 OXE and would like to add the heated hand grips. I have the grips and handle part numbers, but I have been told my alternator will not power both the headlight and the heated grips. Im having trouble locating the part number for the alternator that comes with the OHXE and also the power switch for the heated grips. Does anyone know what the Toro part number is for the alternator that I need or can somebody with a 2014 1128 OHXE provide an engine model and type? It is stamped on the side of the valve cover and should look something like this. I apologize if this has already been covered as I searched the forum and did not find a post on it.



Attachments

·
Retired Moderator
Joined
·
9,900 Posts
:welcome: to the forum hfjeff

I turned your photo for you. It would be MUCH easier if you just posted the numbers since it's still hard to figure out if I'm seeing a 3 or an 8 in the "Type".
Does the engine say 16.50 on one of it's stickers, the recoil ??

I'm pretty sure it's a 1.5 amp but I'm not positive.

Maybe someone else knows. I was looking here https://www.briggsandstratton.com/us/en/support/manuals/results?NTT=21M314-0128*

There are higher amp options in the part list.


·
Registered
Joined
·
1,535 Posts
I had the same issue with an under-powered generator, so I put in switches so that I can run either the HHG, the lights, or nothing, or both under reduced lighting and heat - but never use that option.


·
Registered
Joined
·
61 Posts
Discussion Starter #4
Sorry, I forgot to add some critical info. The motor is a Briggs and Stratton 342cc and 16.5 ftlbs torque. I believe you are correct that the current alternator is 1.5 amps. I understand that I can install a switch and use one or the other, but being and engineer type, I want make it fully functional. I am getting the OEM heated grips, new handles for the auger and drive, and switch and harness.

I am quite mechanically inclined so changing the alternator is no big deal. I just need to know which one to purchase. I was hoping someone with an OHXE and the Briggs 342cc 16.5 motor could take a look at their numbers so I could research which alt is in their machine.

Any help is greatly appreciated.


·
Registered
Joined
·
61 Posts
Discussion Starter #5
I worked with a local Toro Dealer who was very patient and thorough and I believe he found everything to piece this together. Unfortunately Toro does not make a kit like Ariens does so you have to gather the individual pieces. Everything is on order and I will post an update as to how it goes. It is fairly expensive if you have to change the alternator as I do.


·
Account closed by member request.
Joined
·
9,612 Posts
Briggs motors only have stators on them. with a alternator u need a voltage regulator. that is my take on it any way. but as you all know I have been wrong before. here is a tid bit get some rechargeable bike lights. and use the other to keep your paws toasty warm:eek:k::eek:k::eek:k::eek:k:


·
Retired Moderator
Joined
·
9,900 Posts
Most heated grips run around 30 watts so if you're only pumping out 18 on a good day you'll likely be very disappointed in what heat you get. That's if it's noticeable at all. :mad:

My machine, I'd go for one of the better coils that should fit in there so you're getting at least 3 amps, 5 if you need to run lights and warmers on a cold dark winter night.


·
Registered
Joined
·
1,431 Posts
I worked with a local Toro Dealer who was very patient and thorough and I believe he found everything to piece this together. Unfortunately Toro does not make a kit like Ariens does so you have to gather the individual pieces. Everything is on order and I will post an update as to how it goes. It is fairly expensive if you have to change the alternator as I do.

You have the 793640 1.5 amp DC only in there now if the parts list is correct. Which one are you changing over to? Just curious because I am considering the same change, to get more electrical power from the existing engine. Did the dealer tell you if the existing flywheel with the small magnet is compatible with the new stator?


Just for your reference, you might want to look at the following link which has a useful pdf file attached.

http://web.missouri.edu/~schumacherl/276781SingleCylinderOHV.pdf


·
Registered
Joined
·
61 Posts
Discussion Starter #9 (Edited)
The dealer looked up a replacement motor for an 1128 OHXE and then was able to research the alternator that came with that motor. I believe the replacement he ordered is either a 5A or 9A. He also compared the part numbers of that motor's flywheel and mine and found that they are the same. Hopefully he got it right. I do not know what the part number is yet as he just ordered them today over the phone. But I should have the parts by this Saturday hopefully.

I had an Ariens Deluxe 28 that came with the headlamp but no heated grips and I just ordered the Ariens kit and hooked it up and they worked great. I had no issue with a dimming headlamp and that was on a small 250cc Briggs. Too bad Toro is not quite as accommodating.

Fortunately I am persistent!


·
Registered
Joined
·
1,431 Posts
The dealer looked up a replacement motor for an 1128 OHXE and then was able to research the alternator that came with that motor. I believe the replacement he ordered is either a 5A or 9A. He also compared the part numbers of that motor's flywheel and mine and found that they are the same. Hopefully he got it right. I do not know what the part number is yet as he just ordered them today over the phone. But I should have the parts by this Saturday hopefully.

I had an Ariens Deluxe 28 that came with the headlamp but no heated grips and I just ordered the Ariens kit and hooked it up and they worked great. I had no issue with a dimming headlamp and that was on a small 250cc Briggs. Too bad Toro is not quite as accommodating.

Fortunately I am persistent!

You put ariens grips on the airens, correct? Did it have a dedicated power point for the grips? I have a Briggs chart showing a whole whack of different stators with AC, DC, AC/DC, outputs, and alternators up to 60 amps for some of their engines. They are a bit vague on specs in places, and what flywheel goes with what.

Please post your results when you get the new stator on and the grips wired up. Let me know the P/N of the stator you got when its all working. Thanks


·
Registered
Joined
·
61 Posts
Discussion Starter #11
Parts arrived yesterday-2 days after ordering. That is great service and shipping! I started installing everything:

1.) switch cut into dash and installed
2.) old wiring harness removed and new harness in place

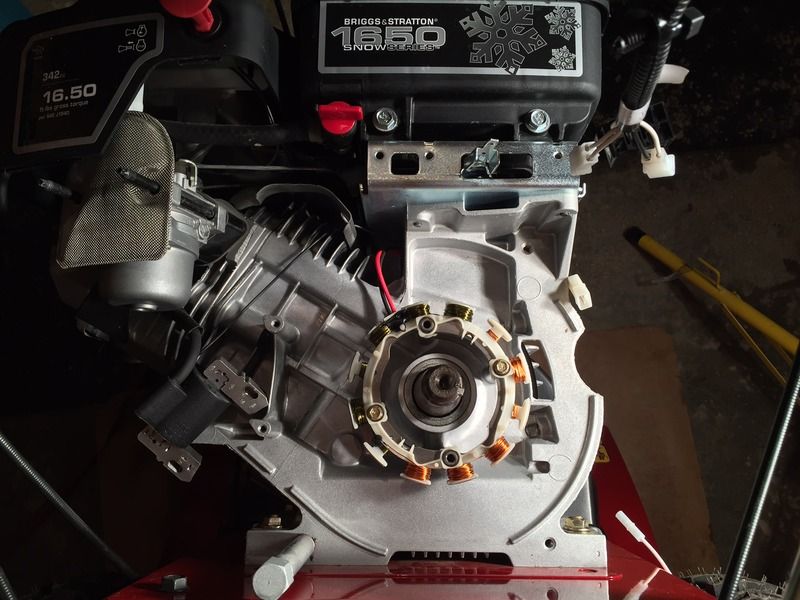

3.) recoil shroud removed and flywheel exposed.
4.) coil removed and out of the way

My biggest challenge is finding a socket that fits over the flywheel nut, and a strap wrench. Not sure if it is standard or metric, but picked up a 1 3/16" and it fits with some play. They were all out of 30mm so I will try another store tomorrow as I want the correct socket.

Time is limited so this will take a few evenings. So far so good. FYI this is what $165 handwarmer kit looks like pieced together:

[URL="[/URL]


·
Retired Moderator
Joined
·
9,900 Posts
If you get a chance can you make a parts list with the P/N's you're using and a review on how well it works once installed and test driven ??


·
Registered
Joined
·
1,535 Posts
Auto parts stores, like Advance Auto, are often a good source of large sockets, and free, through their loan-a-tool section. They may even have a strap wrench, but if you have access to a compressor and an impact wrench, you may not need the strap wrench. Or else, you can pull the spark plug, and shove rope in the cylinder to stop it from spinning - probably easier than trying to hold the cylinder with a strap wrench.


·
Registered
Joined
·
61 Posts
Discussion Starter #14 (Edited)
Mission Accomplished!! (picture heavy)

Heated grip install complete. She is now ready for her first test and non-too-soon as we are supposed to be hit with a good storm Tuesday.

I am very fussy with my work so I probably took more time than most people. Overall I would say I have about 8hrs of actual work on the project with several more trying to track down part numbers and research how to do things prior to digging in. All in all everything went quite well and there were no real issues. Although not needed, there were some specialty tools that came in handy and made things easier and I will list them at the end.

Parts List:

1. Heated grip kit (x2). Includes heated grip, epoxy, and rivets.
P/N: 131-6460

2. Traction Lever (x1). Has a larger arch radius to fit over larger grip.
P/N: 125-7946

3. Auger Lever (x1). Has a larger arch radius to fit over larger grip.
P/N: 125-7947

4. Rocker Switch (x1). On/Off dash switch for the grips.
P/N: 127-5999

5. Wire harness (x1). This harness has the connectors for light and grips.
P/N: 127-5950

6. Alternator (x1). Higher output alternator to power light and grips.
P/N: 696742. USE DC output (RED) for Light and AC output (BLACK) for grips.


I ran it this afternoon and the grips heat up nicely but the headlight does dim when the grips are on. This alternator as recommended by my local dealer is a dual circuit output and is rated at 2-4 Amps DC. I would like a higher output than this but have not found one yet that fits this motor. They make a 5 and 9 amp, but from what I understand you need to change the flywheel as it comes with bigger magnets. Not sure I am going to pursue that option.

The original alternator had 1 black wire as it was 1.5 amps DC only. They new alt is a dual circuit and has 2 wires: 1 black that is 14v AC and 1 Red that is 2-4 amps DC. Both the original and new DC wires have a diode in-line and it is sealed with heat shrink.

[URL="[/URL]

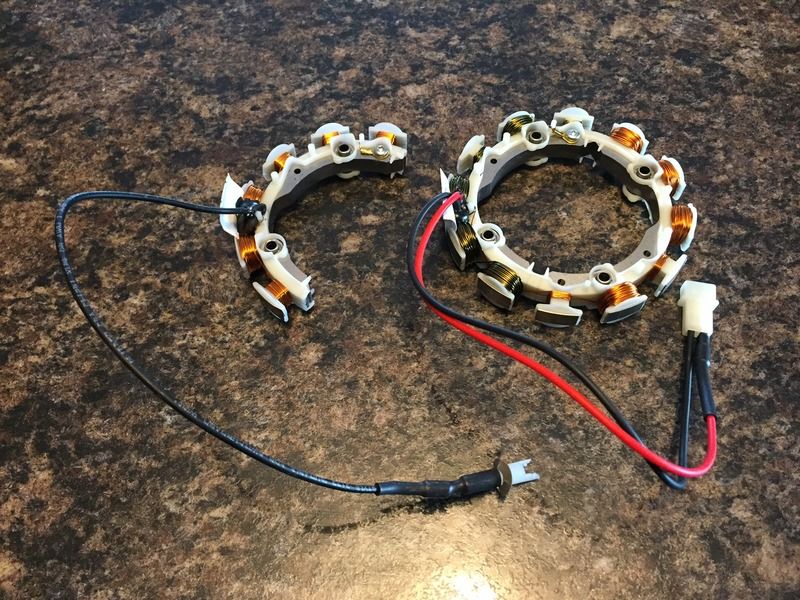

Below is the orig alt and then the new alt. The new alt requires 4 bolts and does not come with them, so you need to purchase 2 more 4mm/.070 bolts to hold it in place. I just bought 4 new stainless sheet metal screws this size.
[URL="[/URL]

[URL="[/URL]

You have to cut the plastic grip that comes on the OXE handle as the new grips slip right over the metal handles. I should have taken a picture of this part but make sure you measure the depth of the heated grip and that will tell you how far you have to cut the plastic back, then add 1/8" so you cut off a little more so the grip goes on all the way. I used a utility knife with new blade and kept rocking it back and forth and sawing the plastic until it came off. Take a piece of paper and wrap it around the handle and mark with a Sharpie so you have a nice straight line.

I installed the grip with the wire coming off at a 45 deg angle or so, so that it does not interfere with the differential release levers:
[URL="[/URL]

Picture of how nicely the levers fit over the grips:
[URL="[/URL]

Dash:
[URL="[/URL]

My wife isn't overly thrilled when I haul my projects in the house, but I do this when I have to epoxy the grips on so the epoxy does not freeze. Besides it kind of spices up the place a bit and makes for interesting conversation:
[URL="[/URL]

Do not forget to rough up the paint on the handles or the epoxy will not hold and will let loose. This happened with my Ariens kit and I had to re-do the epoxy.

Special Tools:
1. Impact wrench with 30mm socket to remove flywheel nut. My Snap-on impact on its lowest setting took less than 1 second to spin it off.

2. Flywheel puller. I had this and it worked great and you are not prying on the flywheel against the motor housing. Rent one from Orielly's if you need.

3. Hand Rivet tool for the heated grip install. I went to Lowes and bought one for $20.

Overall I am happy with how it looks and everything fit. I do wish I had more AMPS so my light would not dim at all. It is still pretty pretty but being an engineer-it bugs me.

My hands get cold very easy so for me the heated grips are worth it.

I look forward to trying out this new Toro as it is brand new. I have had Ariens and John Deere in the past and can't wait to see how the Toro performs and using the joystick control.

Feel free to contact me with any questions and I will do my best to help out.


·
Registered
Joined
·
61 Posts
Discussion Starter #15
Jumped over to the Ariens Forum and got some suggestions on a different alt. It is on order and will be here soon. Once I get it installed and tested I will update the previous post with the new P/N if it fixes the issue.


·
Registered
Joined
·
61 Posts
Discussion Starter #16
Replacement alt installed Friday night. Ordered an Ariens light harness off Ebay so I can get the correct plug. I would rather cut and splice the light/heater harness inside the loom rather than cut the connector off the alt and splice on a generic connector. Hopefully have it by mid week and can test it out.


·
Registered
Joined
·
158 Posts
One thing I would like to point out, only because I have been researching things regarding alternators on both Briggs and Tecumseh setups.

Go back and redo your wiring. Connect the red (DC, that you converted to the black connector) to your light, just like it was originally, and use the black wire (that you taped up that is AC) to power your heaters. You will notice no more light dimming when the heaters are on.

Your grips don't care if it is AC or DC voltage. When you use the DC side you are only using half the current, since the other half is being filtered out by the diode. That is fine for your light, but your grips will work much more effectively using all the current available to them on the AC wire. No sense upgrading to a higher output stator and not using it to it's full potential. I am sure you will notice the grips heating up much faster and will put out more heat overall.

Toro and other manufacturers tend to play games with the wiring colors to keep end-users from doing the upgrade you just did. At least with Tecumseh and some of the Chinese engines they standardized on colors.

On the Cub Cadet grip heaters, for example, the heaters use the AC portion of the stator output (red wire, newer Chinese engine), with the lights always getting the DC output (black wire, newer Chinese engine). I am certain Toro would do the same thing.

As I was going through a few other things, I just realized, the way you have it wired currently (only using the red wire and taping the black up) is absolutely no different than if you didn't change the stator at all. You have the same number of poles, the same amount of wire. You just used only half of the stators total output by using only the DC output side.


·
Registered
Joined
·
158 Posts
Also, didn't notice, but it sounds like you ordered yet a different stator?

Try using the original Toro one wired like I mentioned.

I must add, I am finding that a lot of these alternators are misrepresented.

Take the Tecumseh setups. A little more complicated, but you have in reality only two flywheel options, a 3 magnet and a 5 magnet. You also have a number of stators, but to simplify I will just mention two, a 3amp DC with 5amp AC that uses the 5-magnet flywheel and a 3amp DC that uses the 3-magnet flywheel.

Now, the 3amp-DC/5amp-AC stator has 3 poles used for each power wire. A thicker gauge wire half-wound per pole for AC and a thinner gauge wire full wound for DC. The DC will only use half the current and half the voltage because it uses a diode to strip the other half and provide DC from the AC signal produced. Thus a thinner wire with double the turns matches the AC with a thicker wire and half the same turns putting out almost double the voltage/amperage.

Now, the 3amp-DC stator with a 3-magnet flywheel uses the thinner gauge wire, but all 10 poles of the stator are utilized with full windings. They rated this at only 3amps DC. Now the manual states for testing purposes it should put out AT LEAST 12vdc at full RPM, but that is a minumum rating. In reality it should put out at least 14vdc since the AC test of the wire before the diode calls for a reading of AT LEAST 28vac. The higher output would correspond with the increase in the number of poles utilized, even with only 3 magnets in the flywheel.

To simplify, if we do the math, the 3/5 split stator and 5-magnet flywheel combo puts out at least 0.2amps per pole per magnet. Thus 3 poles x 5 magnets = 3 amps DC (we are ignoring the fact that it is 6amps AC since the thinner gauge wire was never intended to be utilized for the full AC waveform at that draw).

Now the same number of windings, for the same gauge wire, are on the 10 poles for the 3amp-DC stator with a 3-magnet flywheel. That means they are rating those poles for only 0.1amp each per pole per magnet. That is half what the other stator is utilizing as a rating. But, if we extrapolate that, we find that we in fact have 6 amps DC of useable power based on the other combos utilization.

Now, I personally feel they did this because the 3amp-DC/3-magnet flywheel setup was intended to be used as a trickle-charge setup for a battery/12v starter configuration without the use of an outboard regulator. All of the other setups (sans the 1.5amp lighting one a lot of the snowblowers got, along with the previously mentioned 3amp-DC/5amp-AC setup, which was also dedicated to snowblower use) were expecting to use outboard regulators to provide for both battery charging as well as accessory/lighting in various configurations.

I do think the manufacturers provide specialized configurations (like the 3amp-DC/3-magnet flywheel setup sans regulator) for certain applications, but de-rate them so that they are not mis-used in applications that are better suited for a more completely engineered solution.

In my case I am stuck with a 3-magnet flywheel, so the 3amp-DC 10-pole stator was the only reasonable option (people on fleabay are absolutely ignorant about how much they want for a 5-magnet flywheel, where-as the stators are fairly reasonable).

For me, I am switching from a 18w lighting stator to the 3amp-DC stator and am going from just a single incandescent light to multiple LED lights, a chute motor, a deflector motor and heated hand grips. Based on what I calculated the output to be, I may just go with a 12v starter and add a on-board battery. I certainly have enough power to recharge the SLA battery while running and the battery would help with power mutliple things at the same time. But first I will try running with just the stator alone and see how badly everything gets affected by everything else being utilized all at the same time. Per my calcs, with 2amps for the heaters, 1.5-1.8 amps per motor and less than an amp for the lights, I should be 'OK' without a battery with dimming only happening if I stall a motor against a stop.


·
Registered
Joined
·
158 Posts
Sorry for the rambling, it has been a long night and I have far too many things actively being thought about at once... I may clean it my previous post for easier readability later on after I get some sleep, but it is technically all there.


·
Registered
Joined
·
61 Posts
Discussion Starter #20 (Edited)
Dennis, thanks for all the info. I appreciate the time and detail. I did order a different alt/stator and replaced it Friday night and am waiting on a connector for the handlebar harness. I will try this alt/stator and see what the results are. This one I just installed is the same one my Ariens Deluxe 28 had, and also the same as another member has on his Ariens with 342cc and light and heated grips. I posted in that forum as well as I know Ariens also used the 342cc Briggs for a few years on blowers with a light and heated grips. The wiring on this new stator is much thicker than the previous 2. If when I get my connector installed and the light still dims, I will go back to the dual circuit stator and wire up as you suggested-using the DC for the light and AC for the grips. Briggs and Stratton has been absolutely no help what-so-ever. I emailed them twice explaining what I would like to do and they told me that they do not recommend any modifications. I will update this post. I am persistent and do not give up easily.
